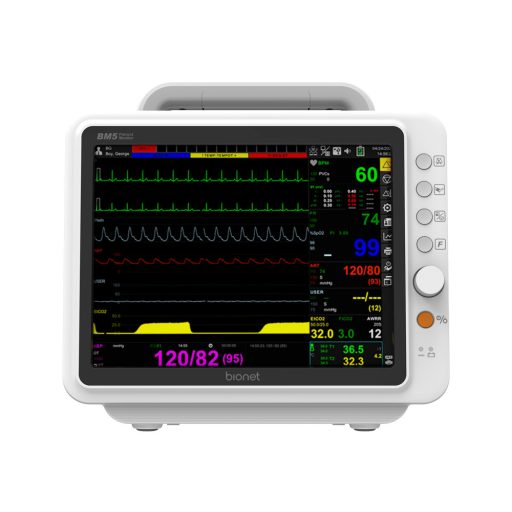

BM5 Expendable multi-parameter patient monitor

BM5 offers clear parameters and user-friendly usability with excellent network connectivity

Features:

• Parameter versatility from recovery to post-op
• User friendly display design & Interface
• Pop up menu
• INOP alarm
• Excellent network connectivity :
  • Bed to Bed connection among all Bionet patient monitoring systems up to 8 monitors
  • User-friendly DHCP network function with AUTO AP search
  • Direct HL7 interface
  • Wired/wireless connections to BMS Bionet central monitoring system up to 64 monitors with dual monitor (wired) & 16 monitors (wireless)

• Dimension (H x W x D): 276 x 262 x 176 mm
• Weight: Approx. 4.0kg
• Power: AC 100-240V (50/60Hz), Adapter 18 V, 2.8 A
• Display: 10.4” color TFT LCD
• Resolution: 800 x 600 pixels
• Parameters: ECG, Heart Rate, Respiration Rate, SpO2, Pulse Rate, Systolic BP, Diastolic BP, Mean BP, 2 x Temperature, 2 x IBP, EtCO2, FiCO2, Airway Respiration Rate

• Traces:
  • 6 waveforms : 2*ECG, SpO2, RR or EtCO2, 2*IBP
  • Sweep speed: 6.25, 12.5, 25, 50 mm/sec

• Indicators:
  • Categorized alarms (3 priority levels), Visual alarm lamp handle
  • QRS beep & SpO2 pulse beep, Percent(%) SpO2 pitch tone,
  • External power LED, Touch screen, Battery status, Rotary knob

• Interface:
  • DC input connector : 18VDC, 2.8A
  • LAN digital output for transferring data
  • Nurse call system connection:
  • 0.3A at 125VAC
  • 1A at 24VDC
  • DC output : 5VDC, 1A (Max)
  • External monitor connection: HDMI
  • USB barcode scanner
  • USB data storage

• Battery:
  • Rechargeable Li-ion battery
  • 2 hours for continuous operation

• Thermal Printer (optional): Speed : 25, 50mm/sec, Paper width : 58mm
• Data Storage: 168 hours trends, 20 cases of 10 sec alarm waveform
• Language: English, French, Spanish, Italian, Germany, Chinese, Russian, Czech, Bulgarian, Portuguese, Romanian, Hungarian, Turkish, Polish, Korean

• Lead Selection:
  • 3-lead : I, II, III
  • 5-lead : I, II, III, aVR, aVL, aVF, V

• ECG waveforms:
  • 3-lead : 1 channel
  • 5-lead : 2/7 channels

• Heart Rate Range:
  • Adult : 30 – 300 bpm
  • Neonate/Pediatric : 30 – 350 bpm

• Heart Rate Accuracy: ±1bpm or ±1%, whichever is greater
• Sweep speed:6.25, 12.5, 25, 50 mm/sec
• S-T segment detection range: -2.0 to 2.0 mV

• Filter:
  • Diagnosis: 0.05Hz ~ 150Hz
  • Monitoring: 0.5 ~ 40 Hz
  • Moderate: 0.5 ~ 25 Hz
  • Maximum: 5 ~ 25 Hz
