Contec CMS600P2VET portable veterinary ultrasound scanner with 7.5 MHz rectal probe

Contec CMS600P2VET portable veterinary ultrasound scanner

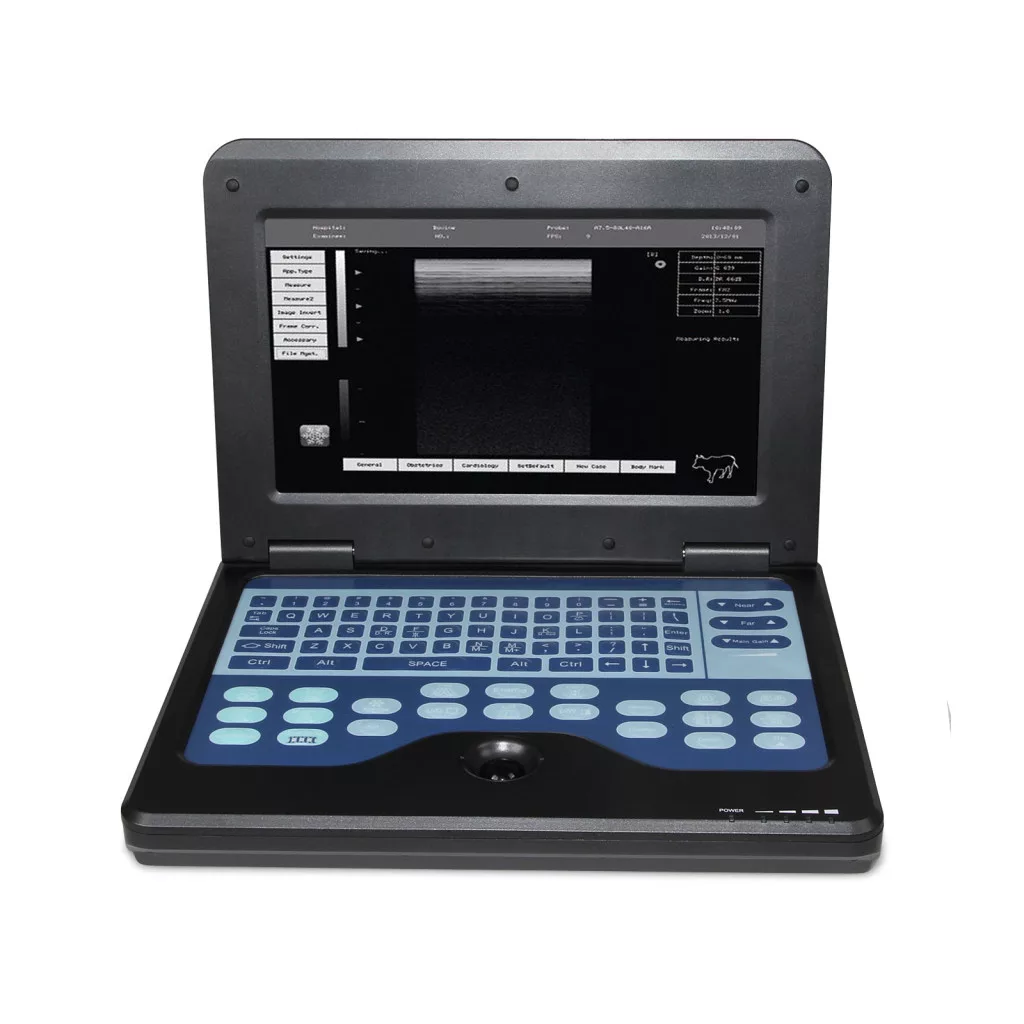

The Contec CMS600P2VET is a laptop-style B-mode veterinary ultrasound diagnostic system. Its embedded operating system provides fast data processing, while pop-up menus and a full keyboard make operation simple.

The device is suitable for obstetric measurements and calculations in pigs, cattle, sheep, horses, dogs, cats and other animals. The 7.5 MHz rectal probe included in the standard package is mainly intended for large animals.

Key features

• Display modes: B, 2B, 4B, B/M, M


• Adjustable gain: near field, far field and total gain can be set separately


• Image management: real-time imaging, freeze, storage, recall, large-capacity cine loop


• Focus: adjustable focus number and position, multi-level scanning depth and dynamic range


• Image processing: frame correlation, gamma correction, histogram, up/down and left/right flip, negative image


• Simple image management and reporting; reports can be printed and exported


• External storage, software update via USB drive


• Connects to video, ink-jet and laser printers

Measurements

• distance, circumference, area, volume, angle, ratio


• gestational age for pigs, horses, cattle, sheep, dogs and cats

Applications

• large-animal practice: pregnancy checks in cattle, horses, pigs and sheep


• small-animal practice: dogs and cats (with the appropriate optional probe)


• field and barn work on battery power

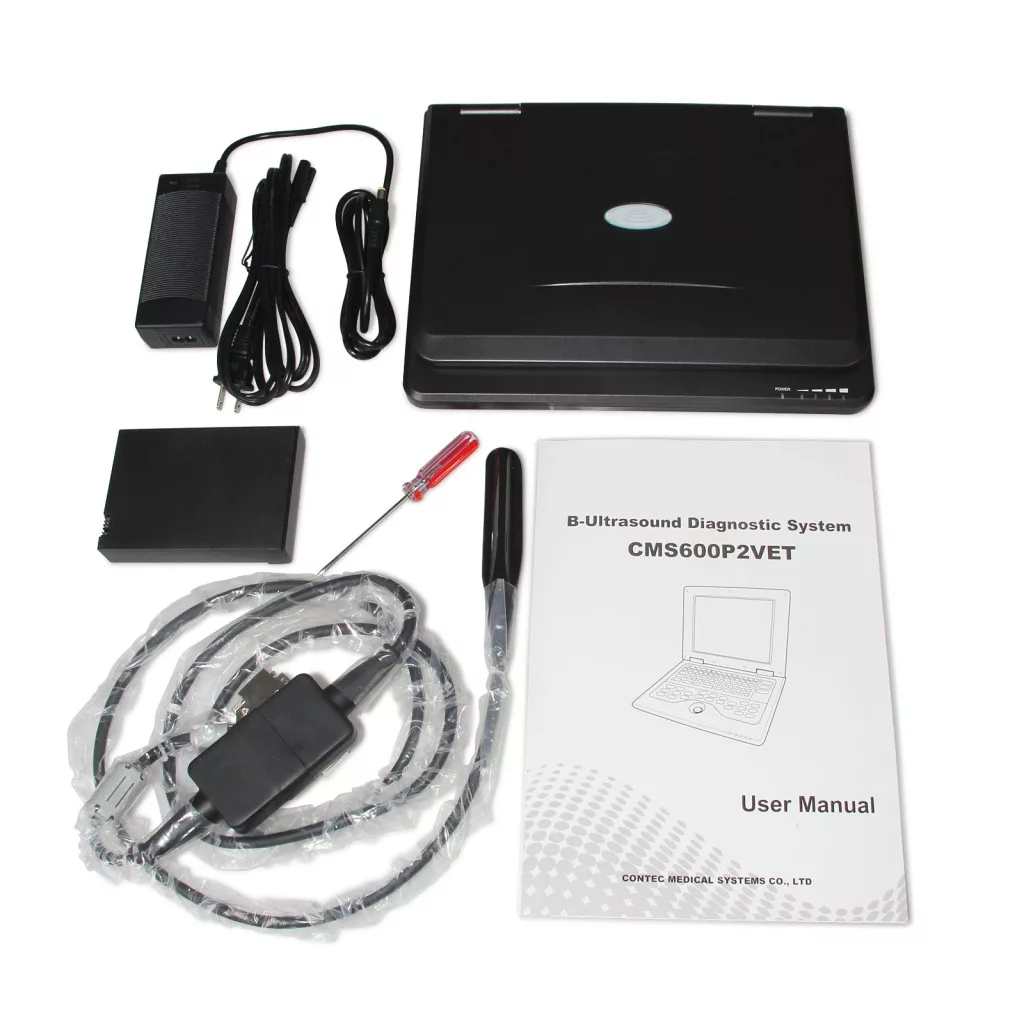

Package contents

• CMS600P2VET ultrasound scanner


• 7.5 MHz rectal probe (A7.5-80L40-A16A)

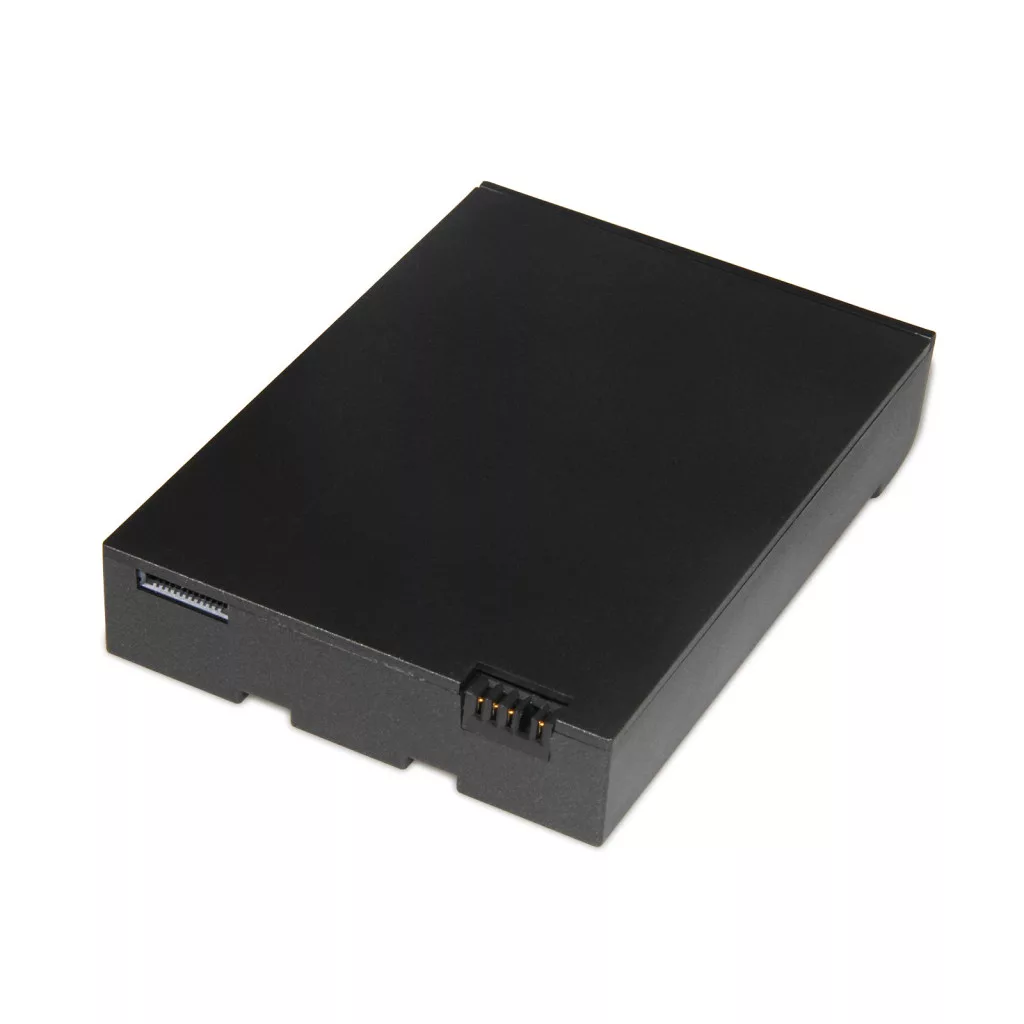

• lithium battery


• power adapter and power cord


• screwdriver

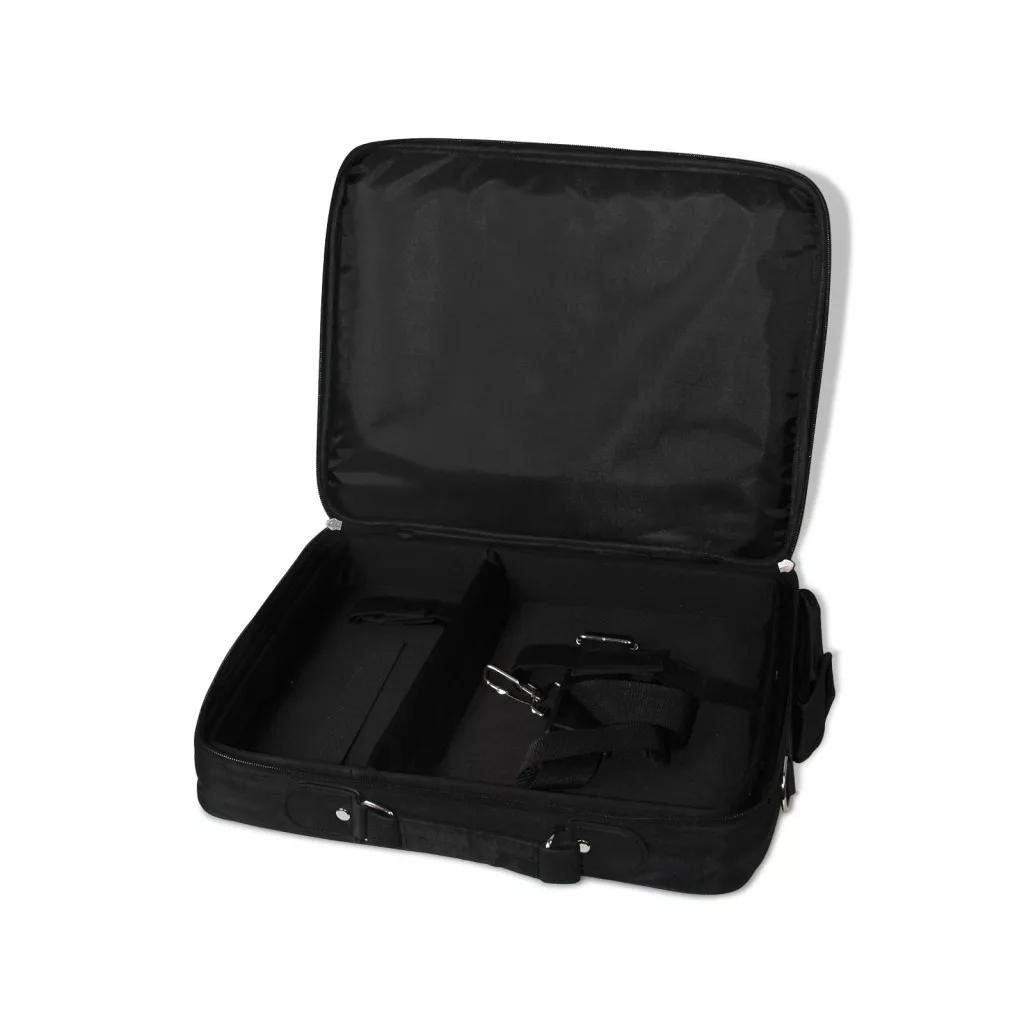

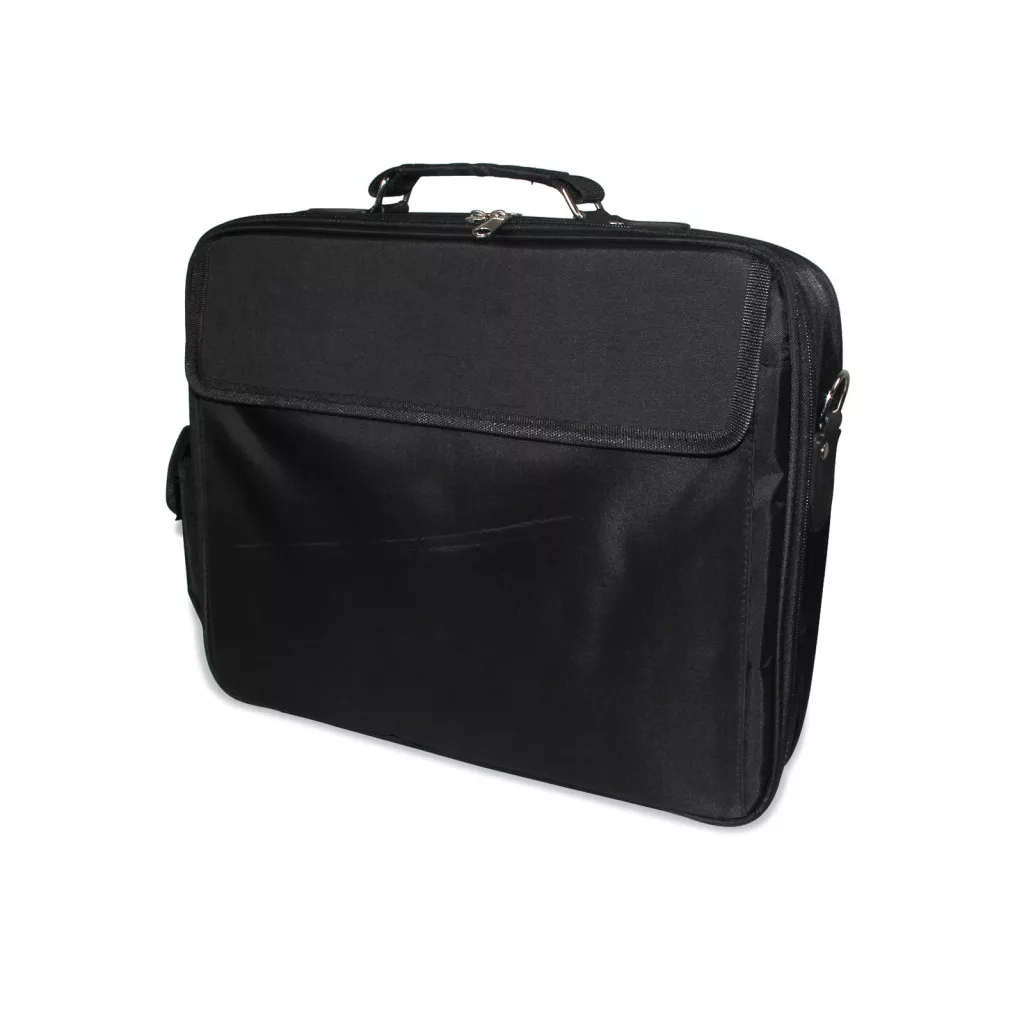

• carrying bag


• user manual

Optional probes and accessories (sold separately)

• 3.5 MHz micro-convex probe (C3.5-80R20-A16A) for small animals


• 6.5 MHz transvaginal probe (E6.5-80R13-A16A)


• 7.5 MHz high-frequency linear probe (L7.5-80L40-A16A)


• 3.5 MHz convex probe (C3.5-80R60-A16A)


• puncture guide for biopsy and cyst aspiration


• video, ink-jet or laser printer


• trolley

Technical data

• Manufacturer: Contec


• Model: CMS600P2VET


• Display modes: B, 2B, 4B, BM, M


• Scanning depth: 240 mm


• Power supply: DC 15 V, 4 A (power adapter, built-in lithium battery)


• Power consumption: ≤ 45 VA


• Electrical safety: Class II equipment, type BF applied part


• Dimensions: 292 × 232 × 45 mm (L × W × H)


• Weight: approx. 2.3 kg (with probe)

Important: For veterinary use only, not intended for human diagnostics. Optional probes and the printer are not included in the standard package.
