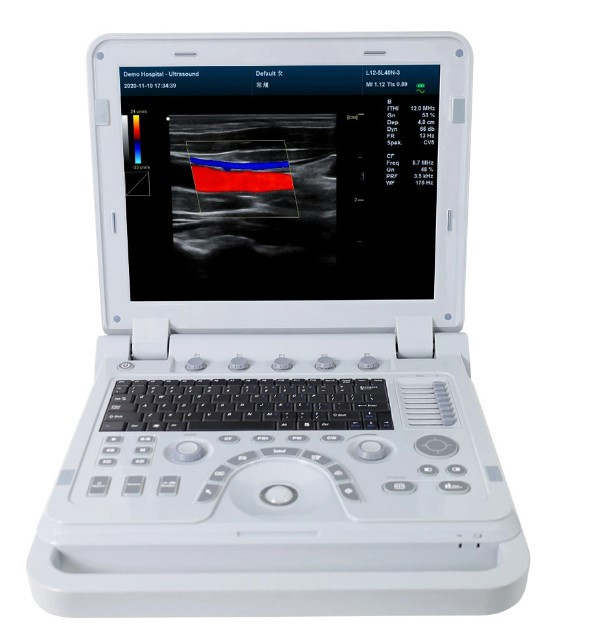

Contec CMS1700B portable color ultrasonic scanner diagnostic system, color doppler + probe
The Contec CMS1700B is a high-resolution color Doppler ultrasound diagnostic instrument with a powerful computer processing platform. The system is mainly used for the diagnosis of abdomen, heart, peripheral blood vessels, breast, obstetrics and gynecology, small organs, urology, muscle, incretio and pediatrics, etc. It adopts Doppler ultrasound imaging technology, advanced image processing technology (such as digital beamforming technology, tissue harmonic imaging (THI), image speckle suppression, etc.) and digital integrated graphic management system, and the internal professional measurement software package fully meets the clinical diagnostic requirements.

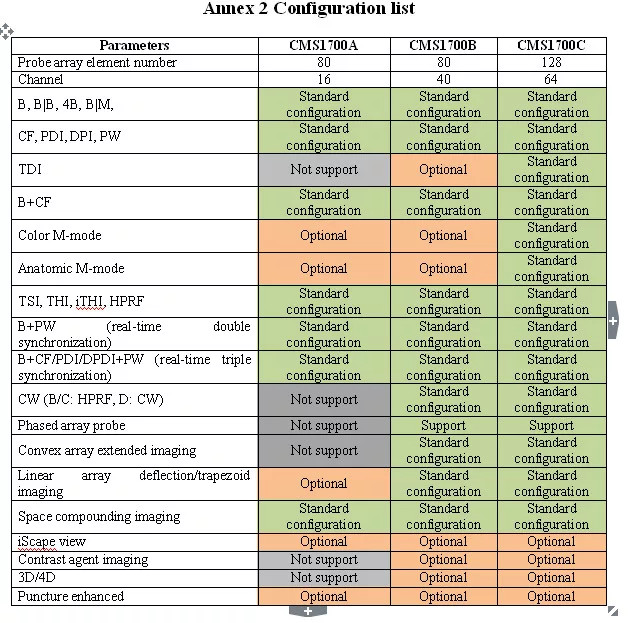

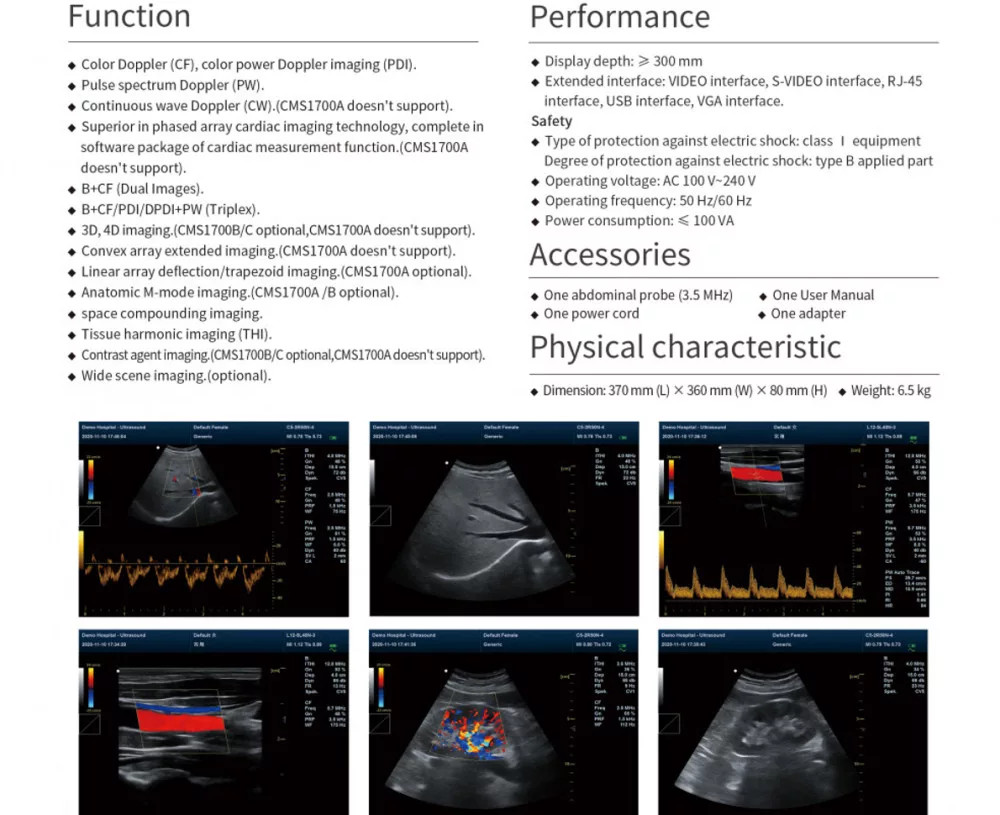

Features
1) Colour Doppler (CF), colour power Doppler imaging (PDI).
2) Pulse spectrum Doppler (PW),
3) Continuous wave Doppler (CW).
4)B+CF (dual image)
5)B+CF/PDI/DPDI+PW (Triplex)
6)3D, 4D imaging (optional).
7)Outstanding in phased-array cardiac imaging technology, complete with cardiac measurement function in software package.
8)Convex array extended imaging.
9)Linear array deflection/trapezoidal imaging.
10)Anatomical M-mode imaging (optional).
11)Space composition imaging
12)Tissue harmonic imaging (THI).
13)Contrast imaging.(optional).
14)Wide field of view imaging (optional).(optional)
15)Sting extended.(optional).(optional)
Performance
1)Depth of view: ≥ 300 mm

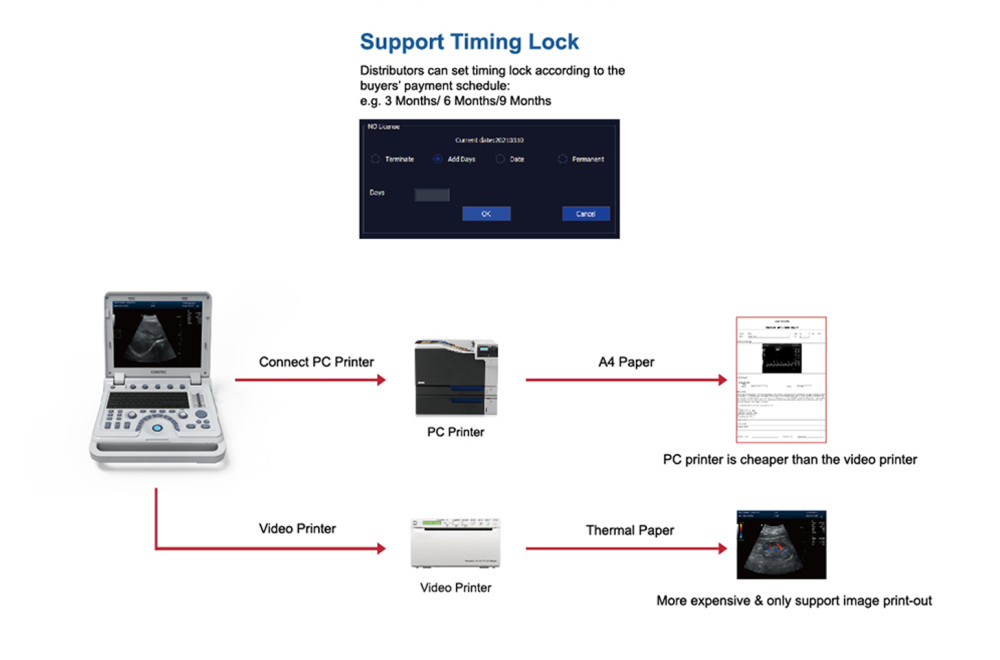

2)Extended interface: VIDEO interface, S-VIDEO interface, RJ-45 interface, USB interface, VGA interface.
Security
Type of protection against electric shock: Ⅰ class equipment.
Degree of protection against electric shock: Type B applied part
Operating voltage: AC 100 V~240 V
Operating frequency: 50 Hz/60 Hz
Power consumption: ≤ 100 VA

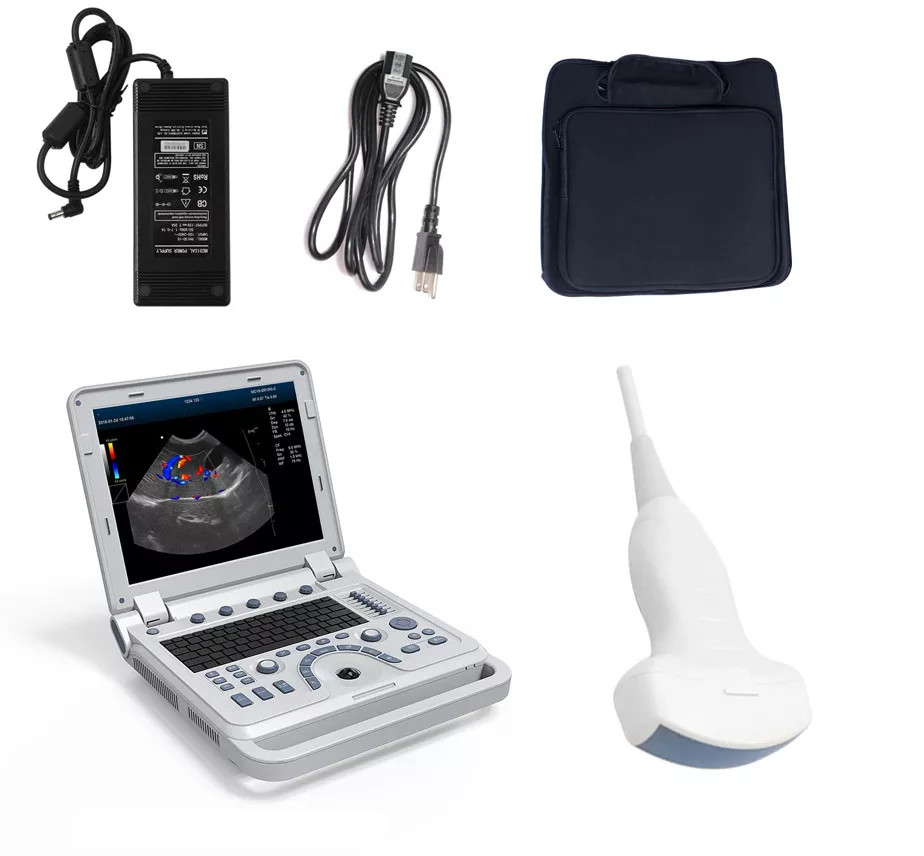

Accessories
One abdominal probe (3,5 MHz)
One user manual
One power cable
One adapter

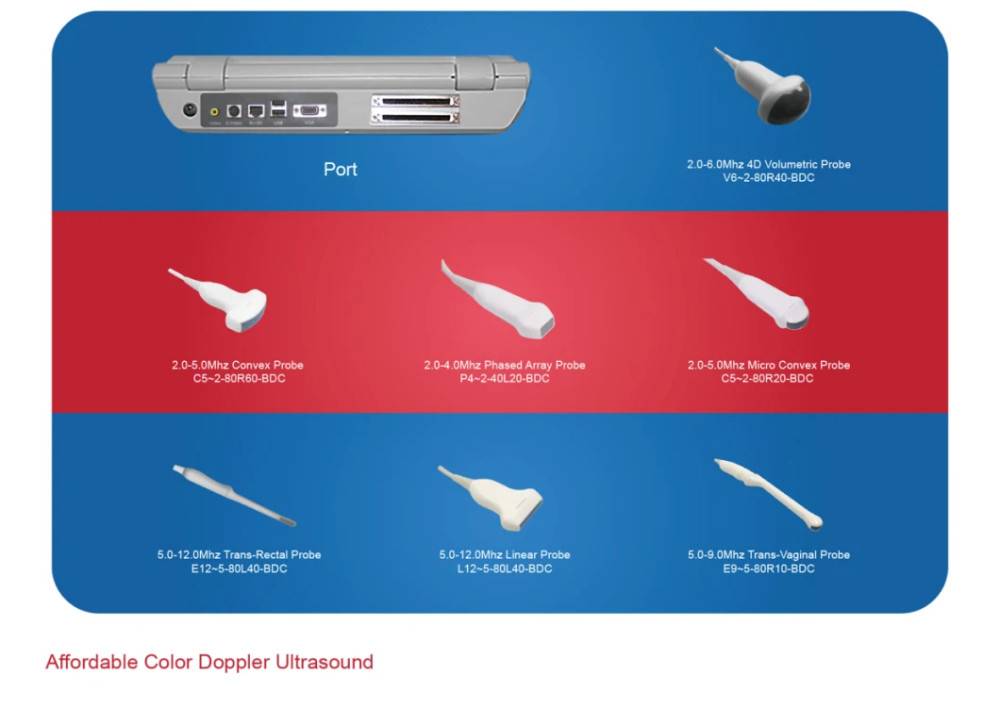

Optional probe:
Linear probe
Cardiac probe
Rectal probe
Transvaginal probe
Physical characteristic
Size: 370 mm (length) × 360 mm (width) × 80 mm (height)
Weight: 6,5 kg
