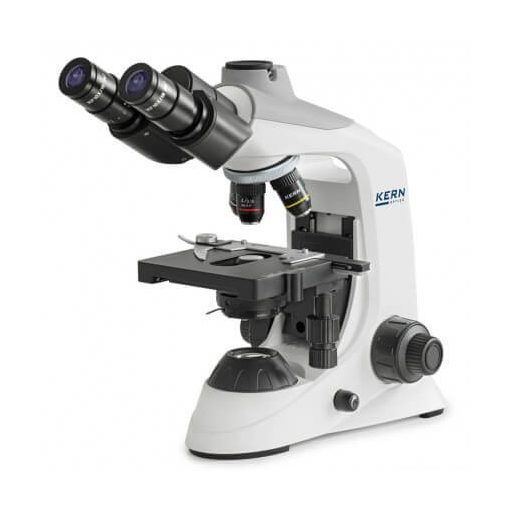

Kern OBE 134 Transmitted light microscope trinocular
The KERN OBE 134 trinocular microscope is suitable for medical practices, science and education. The high-quality transmitted light microscope provides excellent images for translucent, thin and high-contrast tissues and cells. The high-quality optics with achromatic objectives and the continuously dimmable LED illumination ensure a wide range of applications. The height-adjustable ABBE condenser with aperture diaphragm ensures optimal light focusing. The microscope is also available as a digital complete solution with matching C-mount camera or high-resolution tablet camera as a set. This also makes it ideal for measurements, counting, documentation, archiving and image processing in the laboratory and education.
The KERN OBE 134 trinocular microscope is suitable for medical practices, science and education. The high-quality transmitted light microscope provides excellent images for translucent, thin and high-contrast tissues and cells. The high-quality optics with achromatic objectives and the continuously dimmable LED illumination ensure a wide range of applications. The height-adjustable ABBE condenser with aperture diaphragm ensures optimal light focusing. The microscope is also available as a digital complete solution with matching C-mount camera or high-resolution tablet camera as a set. This also makes it ideal for measurements, counting, documentation, archiving and image processing in the laboratory and education.
Product details
- Transmitted light microscope for high-contrast specimens
- Trinocular design with connection tube for camera
- Mechanical stage for 1 slide
- Incl. dust cover and eyecups
- Dimensions (microscope OBE 134): W 360 × D 150 × H 320 mm
- Weight (microscope OBE 134): 4.488 kg
- Optionally with tablet or C-mount camera (incl. adapter)
- Microscope set with camera
- The trinocular OBE 134 is also available in a set with an adapted C-mount camera for sharp images or a tablet camera for direct viewing of live images.
Technical details- Objective lenses: DIN achromatic (finite optics)
- Optical system: Abbe condenser 1.25 (numerical with aperture diaphragm)
- Illumination: 3 W LED
- Siedentopf: Butterfly 30° inclined, 360° rotatable
- Eyepieces: High widefield, 10x magnification, Ø 18 mm
- Dioptric compensation: one-sided
Objective lenses:
- 4 x / 0.10 / working distance 18.6 mm
- 10 x / 0.25 / working distance 6.5 mm
- 40 x / 0.65 (spring loaded) / working distance 0.47 mm
- 100 x / 1.25 (oil) (spring loaded)/ working distance 0.07 mm
Scope of delivery
- 1 KERN OBE 134 transmitted light microscope trinocular
- 1 Power supply unit (Euro)
- 2 eyecups
- 1 dust cover
- 1 multilingual instruction manual
