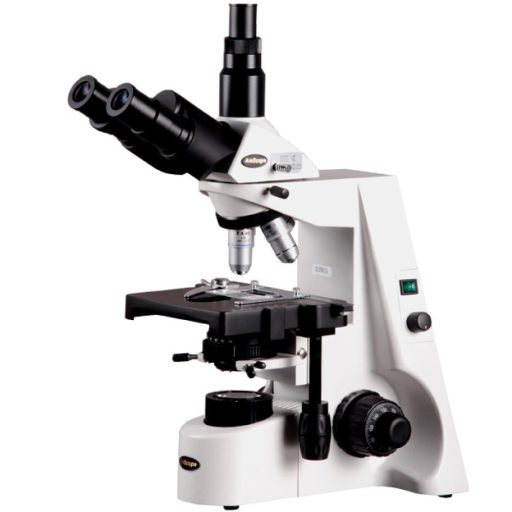

Darkfield Microscope-AmScope Trinocular 40X-2500X
This is a professional infinity trinocular darkfield compound microscope with superior widefield infinity optical system, offering crisp clear images. It comes with a 30 degree inclined 360 degree swiveling trinocular Siedentopf head, widefield eyepieces, fine focusing, 3-D mechanical stage, and Kohler halogen illumination with wide band power supply (from 85V to 230V). The backward nosepiece configuration allows spacious room for convenient operation and comfortable observation. The trinocular port uses the third port for camera capabilities giving you the remaining two ports to view your specimen. This microscope provides six darkfield magnification powers and six levels of brightfield magnification (40X, 100X, 250X, 400X, 1000X and 2500X). It is a superb instrument for clinic offices, veterinary labs and research laboratories.
This is a professional infinity trinocular darkfield compound microscope with superior widefield infinity optical system, offering crisp clear images. It comes with a 30 degree inclined 360 degree swiveling trinocular Siedentopf head, widefield eyepieces, fine focusing, 3-D mechanical stage, and Kohler halogen illumination with wide band power supply (from 85V to 230V). The backward nosepiece configuration allows spacious room for convenient operation and comfortable observation. The trinocular port uses the third port for camera capabilities giving you the remaining two ports to view your specimen. This microscope provides six darkfield magnification powers and six levels of brightfield magnification (40X, 100X, 250X, 400X, 1000X and 2500X). It is a superb instrument for clinic offices, veterinary labs and research laboratories.
Features:
- Comfortable Operation
- High Resolution
- Clear Sharp Images
- Precise Mechanical Control System
- Kohler Illumination System with Field Diaphragm for Lighting Control
- 30 Degree Inclined, 360 Degree Swiveling, Trinocular Siedentopf Head
- Six Brightfield Magnification Settings: 40X, 100X, 250X, 400X, 1000X and 2500X
- Intensity-Variable Transmitted Halogen Lighting System
- Abbe Condenser with Iris Diaphragm and Swing-Out Filter Holder
- Dual Side Coaxial Coarse and Fine Focusing Control
- Adjustable Interpupillary Distance
- Adjustable Diopter on Ocular
- Two Sets of Wide Field Eyepieces: Wide Field 10X (22mm Field of View) and 25X
- Upward Stage Stopper to Protect Objectives and Slides
- Manufactured under ISO 9001 Quality Control Standards
- Excellent Five (5) Year Factory Warranty
Specifications:
- Head: Siedentopf trinocular head, 30-degree inclined
- Eyepiece: WH10X/22mm and WH25X
- Objectives: infinity objective 4X, 10X, 40X (spring), 100X (spring, oil)
- Focusing: low position coaxial focus system
- Interpupillary Adjustment Mechanisms: 2-3/16" - 3-0" (55 - 75mm)
- Mechanical Stage: 7.1"x5.9" (180mm x 150mm)
- Division of Fine Focusing: 0.0000787" (0.002mm)
- Darkfield Condenser: N.A. 0.90, dry, swing with iris diaphragm filter
- Illumination: Kohler, halogen 12V/20W
- Power Supply: 85V-230V wide voltage, CE certified
Packing List:
- One Trinocular Siedentopf Head
- One Microscope Body Frame with Base and Kohler Illumination System
- Four High Quality Objectives: 4X, 10X, 40X and 100X
- Two Pairs of Widefield Eyepieces: WH10X and WH25X
- One Dry Darkfield Condenser (N.A. 0.90)
- One Brightfield Condenser (N.A. 1.25)
- One Power Cord
- Three Color Filters
- One Dust Cover
- One Spare Halogen Bulb
- One Spare Fuse
