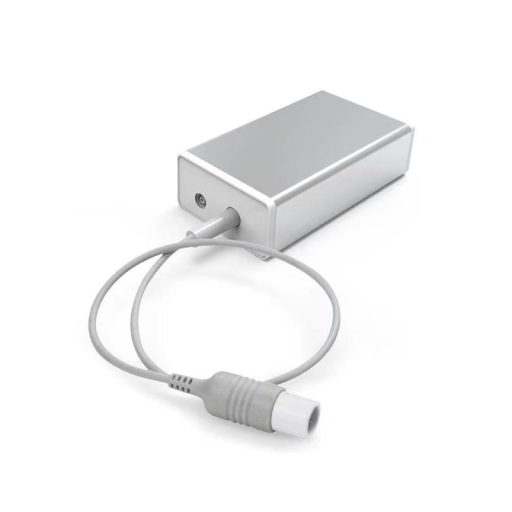

The module provides patient's physiological state for physician or nurse in time, which plays an important role in clinical anesthesia, CPCR(Cardiac Pulmonary Cerebral Resuscitation), ICU and emergency medicine, etc. It can be used under physician monitoring, and it is be applicable for adult, pediatric and neonatal.
- Simple operation, safe and effective, which meets the requirements of relative standards.
- Three units (mmHg, kPa and %) are optional.
Performance
CO2 Measurement Range: 0 to 150 mmHg
CO2 Measurement Accuracy:
- 0~40 mmHg: ±2mmHg
- 41~70 mmHg: ±5% of reading
- 71~100 mmHg: ±8% of reading
- 101~150 mmHg: ±10% of reading
Respiratory monitoring range: 2rpm~150rpm, accuracy: ±1rpm
Working voltage: DC 5.0V
