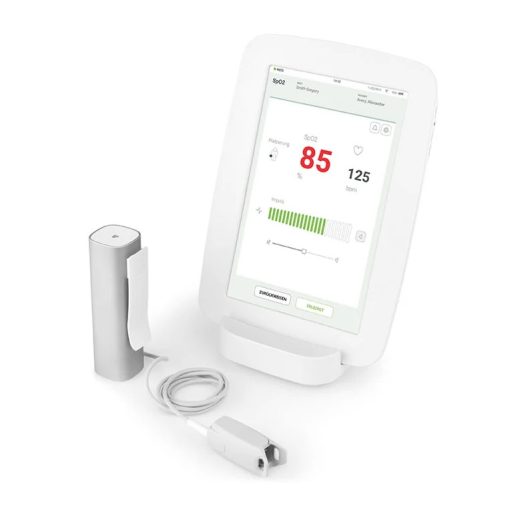

MESI mTablet SpO2
MESI mTablet SpO2 for the precise and flexible measurement of oxygen saturation and pulse rate. The system consists of a medical tablet and a battery-powered SpO2 module that transmits the measured data wirelessly to the tablet. The measured data is shown in real time on the large, clear display. The MESI mTablet has an intuitive user interface, as well as an electronic patient file in which all examinations can be stored. The values can also be easily shared with specialist colleagues.
The system can be individually supplemented with extensions and other modules and expanded into a complete diagnostic unit. In addition, various apps are available in order to perform special examinations, such as the 6-minute walk test.
The MESI mTablet SpO2 is supplied as a complete, ready-to-use set including SpO2 module and charging station.
Product Details:
MESI mTablet SpO2
Individually expandable medical diagnostic system
Module-based medical tablet
Supplied with SpO2 module for oxygen saturation measurement
Intuitive user interface
Large, easy to read screen
Very good functionality, even with low perfusion
Wireless transmission of data from module to mTablet
Acoustic and visual warnings in case of deviations from the target value
Over 8000 measurements with one battery charge
Trend analysis
Additional SpO2 modules can be added to the system to monitor multiple patients simultaneously
With the help of apps, the system can be expanded to include e.g. the 6-minute walk test and other functions
Technical data:
For measuring oxygen saturation and pulse rate
Measuring range SpO2: 45 - 100 %
Measuring range pulse rate: 20 - 300 beats/minute
Accuracy plethysmogram: 0 - 28 LSB
Accuracy Roth plethysmogram: 0 - 244 LSB
Accuracy signal quality: 0 - 100 %
8 GB memory
5 MP camera
Mono loudspeaker
Screen: 1280 x 800 px IPS
Equipped with a high-performance lithium polymer battery
Up to 56 hours of continuous use or approx. 8000 examinations per battery charge
Charging time with fully discharged battery: approx. 2 hours
Dimensions and weight of the charging station: 40 x 20 x 3.8 cm, approx. 675 g
Dimensions and weight of the module: 4 x 4.8 x 13.5 cm, approx. 210 g
Protection class IP44
