Contec TLC-5000 ECG holter

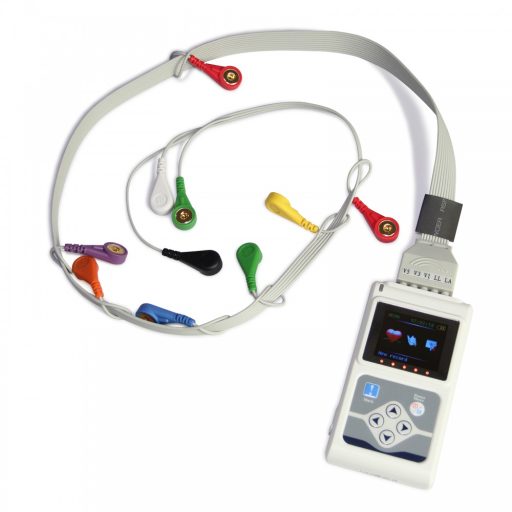

It includes a set of ECG electrodes, a set of lead cables, a USB cable, a carrying case and a user manual.
Dynamic ECG Systems adopt 12-lead system of international standard, which can continuously record ECG waveform for 24-hour and analyze ECG waveform by the PC software. It is applicable for use in medical institution and community.
The ECG Holter system includes an ECG recorder and software that can be connected to a computer system or laser printer. The recorder has built-in flash media to increase memory capacity. The sampling frequency of 1000 samples per second improved the quality of the waveform. The accuracy of the system is ensured by AHA and MIT data.
Product features:
- Windows software interface (GB, IT, PL, PT, RU)
- fast and accurate analysis system
- the special editing system for the R point
- the perfect analysis function of the ST segment
- T-wave analysis function for all channels and T-wave trend graph
- an overview of the ECG trend chart
- HR variability analysis system providing regular SDNN, SDANN, RMSSD, LF, HF, time range and frequency range
- QT analysis
- ECG without direct pacing without a separate channel; VCG, VLP, TVCG, HRT, TWA functions are also available
- 12-channel synchronized ECG recording

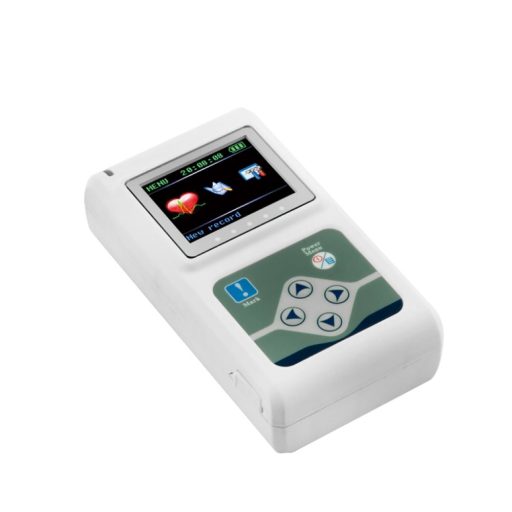

- small ECG recorder with OLED color screen to display real-time ECG waveform and review storage data.
- capacity up to 2G
- selectable sampling rate, 200, 500, 1000 sampling / sec
- sampling accuracy: 12 bits
- built-in FLASH media to prevent damage to the flash card due to re-insertion and removal
- USB interface
- operating system: Win 98, 2000, XP, 7, 8, 10, 11
Specifications:
- Dimension voltage: 1mV ± 5%
- Standard sensitivity: 10 mm / mV ± 5%
- Noise level: = 30µV
- CMRR: = 60dB
- Frequency response: 10 Hz as a reference value, 0.5 Hz ~ 55Hz; -3dB
- Time constant:> 3.2s-
- Scanning speed: 25 mm / s ± 5%
- Continuous polarization voltage: ± 300mV
- At least measuring signal: -50 µV p-p
- Inter-channel interference: scan path deflection (result of inter-channel interference) <0.5 mm
- Product safety type: Type B (internally fed)
- Size: 111 (L) x60 (W) x25 (H) mm
Accessories:
- Lead cable (1 set)
- ECG electrode (1 set)
- USB cable(1)
- Bag(1)
- User manual(1)
