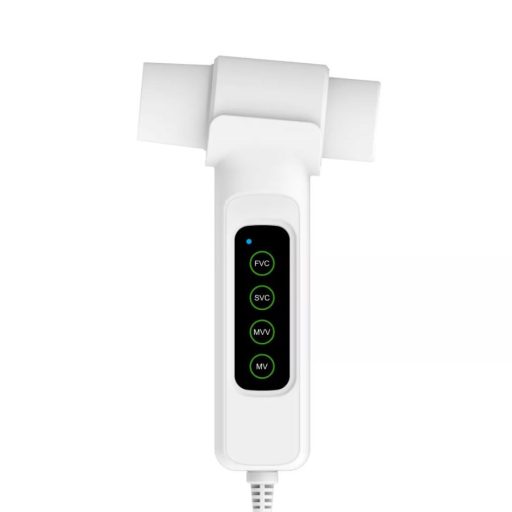

Contec SPM-D handheld digital spirometer

SPM-D is a device for testing pulmonary function, combining with professional pulmonary function software, it is used to test the patient’s respiratory function and lung status

• Measure and display over 100 parameters related to FVC, SVC, MVV and MV functions.
• Display trend chart and respiratory waveform tested, recommend the optimal test curve intelligently.
• With management functions of user information and case data.
• Built-in multiple predicted values, which can be set manually.
• BTPS self-correction function, measure environment parameters automatically.
• Support bronchial test.
• With calibration function and quality control, ensure the test accuracy.
• With report generation, editing and printing functions.
• One-button test function.

Performance:

• Volume range: 0 ~ 10 L
• Flow range: 0 L/s ~ 16 L/s
• Volume accuracy: ± 3 % or ± 0.05 L (whichever is greater)
• Flow accuracy: ± 5 % or ± 0.17 L/s (whichever is greater)

Accessories

• A User Manual
• A nose clip
• A mouthpiece (disposable)
• PC software

Physical characteristic:

• Dimension: 143 mm (L) × 84 mm (W) × 41 mm (H)
• Weight: 130 g
