CONTEC E12 12-Channel Touchscreen ECG
The 12-channel ECG machine is an electrocardiograph capable of simultaneously acquiring 12-lead ECG signals and printing ECG waveforms using an integrated thermal printer.
Key features include automatic or manual ECG waveform acquisition and display, automatic measurement, analysis and interpretation of ECG parameters, as well as warning functions for conditions such as electrode disconnection and paper shortage.
The CONTEC E12 is a professional digital 12-lead ECG machine featuring a high-resolution touchscreen display, automatic ECG analysis and an integrated thermal printer, supporting fast and accurate cardiac diagnostic examinations.
The device is suitable for use in hospitals, outpatient clinics, emergency care and mobile patient care environments.
Key features include automatic or manual ECG waveform acquisition and display, automatic measurement, analysis and interpretation of ECG parameters, as well as warning functions for conditions such as electrode disconnection and paper shortage.
The CONTEC E12 is a professional digital 12-lead ECG machine featuring a high-resolution touchscreen display, automatic ECG analysis and an integrated thermal printer, supporting fast and accurate cardiac diagnostic examinations.
The device is suitable for use in hospitals, outpatient clinics, emergency care and mobile patient care environments.
In stock
Stocks
Winterthur Medical webshop warehouse - W00
In stock
1 354.62 $
Related products
Details
Features

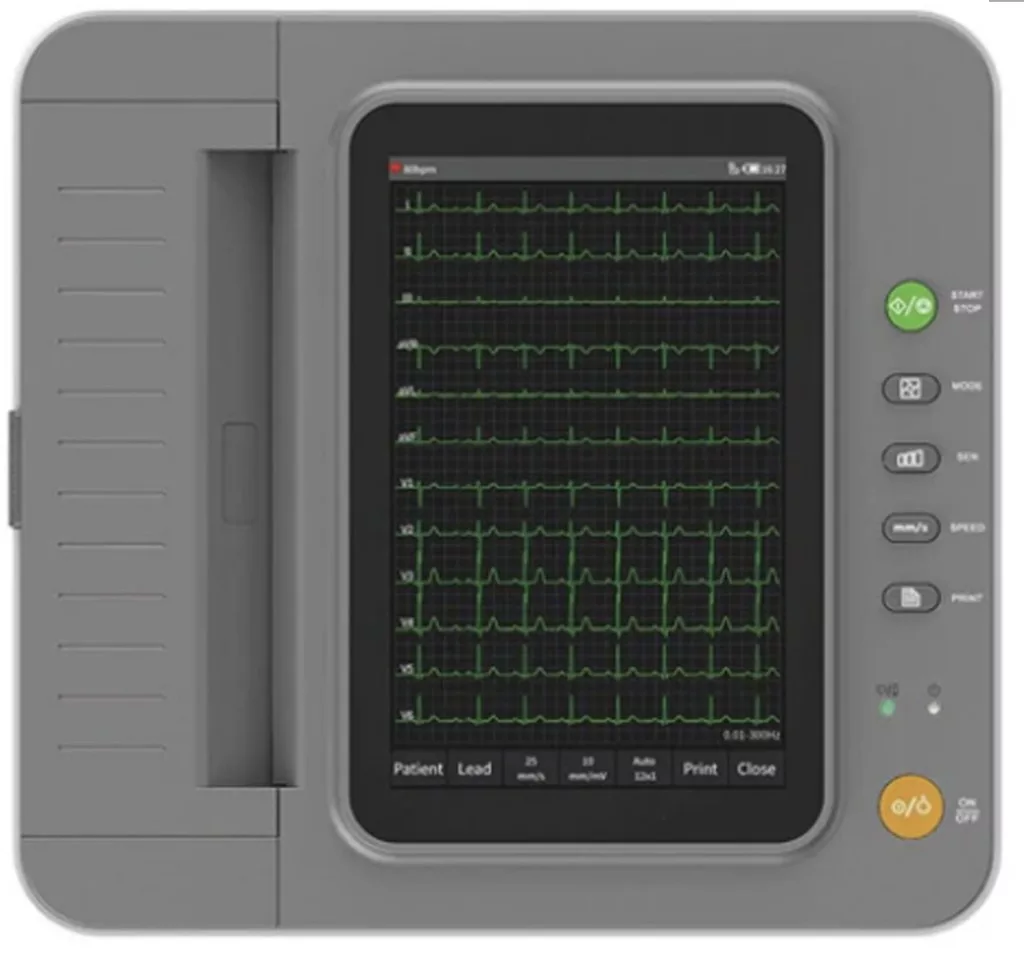

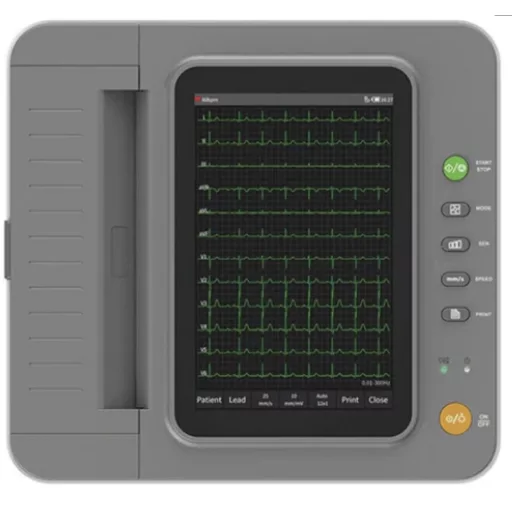

10.1-inch high-resolution colour LCD touchscreen with a resolution of 1280 × 800 pixels. The device can be operated via the touchscreen or dedicated function buttons for quick and convenient use.
Synchronized 12-lead ECG acquisition, supporting both standard 12-lead and Cabrera lead waveform display. Digital signal processing technology ensures high-quality ECG signals using AC/mains interference filtering, baseline filtering, EMG filtering and low-pass filtering.
The display can show 3-, 6- or 12-lead ECG waveforms together with heart rate (HR), printing mode, sensitivity, paper speed, filter status, time, battery level, background grid, measured data and interpretation information. Warning functions are available for electrode disconnection, overload and system status.
The built-in high-capacity memory can store at least 4,000 patient records, facilitating data retrieval and statistical analysis.
Previous patient records can be viewed, searched, edited, transferred and printed. Lead corrections are supported, and data can be exported in various electronic file formats, including DAT, PDF, XML, BMP, JPEG and PNG.
The device features Wi-Fi wireless communication. It also supports data transfer via LAN and USB cables, including automatic case uploading, report downloading and printing.
Supports external USB devices, including a standard keyboard, mouse, scanner and printer.
Technical Specifications
Manufacturer: CONTEC Medical Systems Product type: Digital ECG machine Model: E12 Number of ECG channels: 12 channels Number of leads: 12 leads Examination type: Resting electrocardiography Display: 10.1" high-resolution colour LCD touchscreen Display resolution: 1280 × 800 pixels Operation: Touchscreen and function buttons Printer: Built-in thermal printer Printing modes: Automatic, manual, rhythm printing Display modes: 3 / 6 / 12 leads Cabrera lead support: Yes Automatic ECG interpretation: Yes Automatic measurement: Yes Rhythm analysis: Yes ST-segment analysis: Yes Heart rate measurement: Yes QRS analysis: Yes Built-in memory: Minimum 4,000 patient examinations Data export: DAT, PDF, XML, BMP, JPEG, PNG PC connection: Yes USB connection: Yes LAN connection: Yes Wi-Fi: Optional External device support: Keyboard, mouse, scanner, printer Digital signal processing: Yes Filters: AC filter, EMG filter, baseline filter, low-pass filter Sampling frequency: 32 kHz Sampling resolution: 24 bit Frequency response: 0.01 Hz–300 Hz Power supply: Mains and battery operation Battery type: Built-in lithium battery Battery capacity: 14.8 V / 5200 mAh Standby time: Up to 10 hours Continuous printing time: More than 3 hours Thermal paper width: 210 mm Paper speed: 5 / 6.25 / 10 / 12.5 / 25 / 50 mm/s Sensitivity adjustment: Automatic and manual Defibrillator protection: Yes Medical electrical equipment classification: Class I, CF Protection against liquids: IPX0 CE certified: Yes Clinical use: Yes Suitable for mobile patient care: Yes Suitable for hospital use: Yes Suitable for outpatient clinics: Yes Suitable for general practitioners: Yes Professional diagnostic ECG system: Yes
Accessories

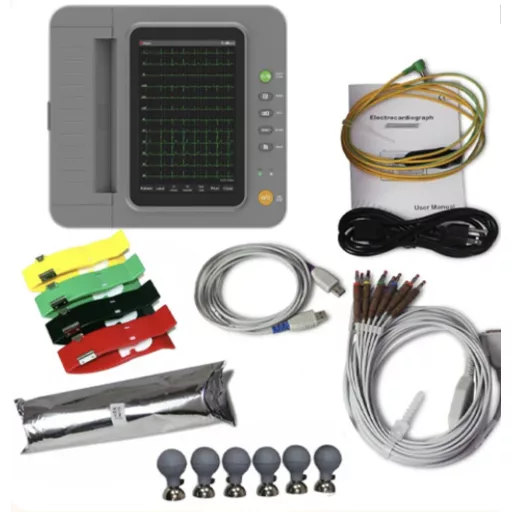

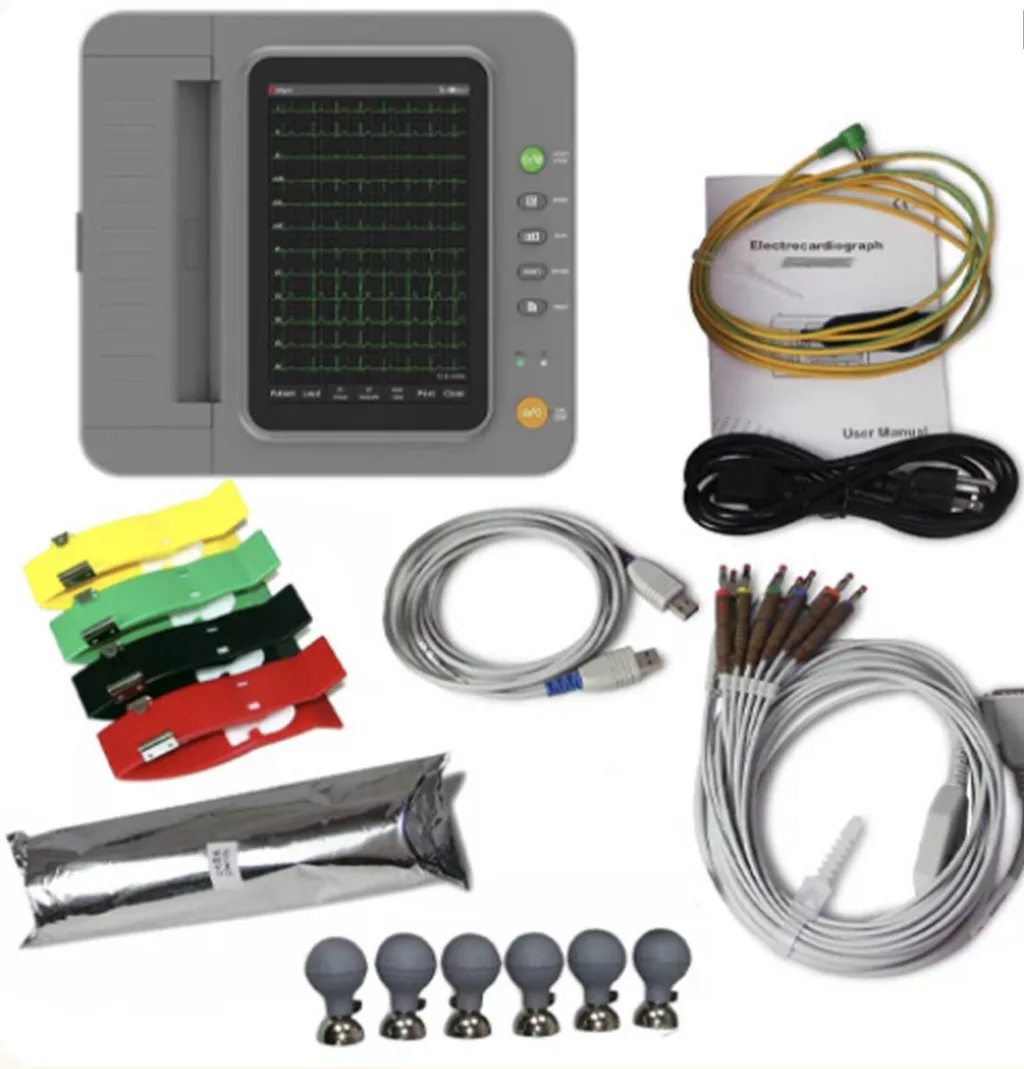

Standard Accessories
1 × ECG cable
1 × Limb electrode set
1 × Chest electrode set
1 × Thermal paper
1 × Power cable
1 × Grounding cable
1 × User manual
Optional Accessories
PC software
Conversion crocodile clips + disposable electrodes
Trolley / stand
10.1-inch high-resolution colour LCD touchscreen with a resolution of 1280 × 800 pixels. The device can be operated via the touchscreen or dedicated function buttons for quick and convenient use.
Synchronized 12-lead ECG acquisition, supporting both standard 12-lead and Cabrera lead waveform display. Digital signal processing technology ensures high-quality ECG signals using AC/mains interference filtering, baseline filtering, EMG filtering and low-pass filtering.
The display can show 3-, 6- or 12-lead ECG waveforms together with heart rate (HR), printing mode, sensitivity, paper speed, filter status, time, battery level, background grid, measured data and interpretation information. Warning functions are available for electrode disconnection, overload and system status.
The built-in high-capacity memory can store at least 4,000 patient records, facilitating data retrieval and statistical analysis.
Previous patient records can be viewed, searched, edited, transferred and printed. Lead corrections are supported, and data can be exported in various electronic file formats, including DAT, PDF, XML, BMP, JPEG and PNG.
The device features Wi-Fi wireless communication. It also supports data transfer via LAN and USB cables, including automatic case uploading, report downloading and printing.
Supports external USB devices, including a standard keyboard, mouse, scanner and printer.
Technical Specifications
Manufacturer: CONTEC Medical Systems Product type: Digital ECG machine Model: E12 Number of ECG channels: 12 channels Number of leads: 12 leads Examination type: Resting electrocardiography Display: 10.1" high-resolution colour LCD touchscreen Display resolution: 1280 × 800 pixels Operation: Touchscreen and function buttons Printer: Built-in thermal printer Printing modes: Automatic, manual, rhythm printing Display modes: 3 / 6 / 12 leads Cabrera lead support: Yes Automatic ECG interpretation: Yes Automatic measurement: Yes Rhythm analysis: Yes ST-segment analysis: Yes Heart rate measurement: Yes QRS analysis: Yes Built-in memory: Minimum 4,000 patient examinations Data export: DAT, PDF, XML, BMP, JPEG, PNG PC connection: Yes USB connection: Yes LAN connection: Yes Wi-Fi: Optional External device support: Keyboard, mouse, scanner, printer Digital signal processing: Yes Filters: AC filter, EMG filter, baseline filter, low-pass filter Sampling frequency: 32 kHz Sampling resolution: 24 bit Frequency response: 0.01 Hz–300 Hz Power supply: Mains and battery operation Battery type: Built-in lithium battery Battery capacity: 14.8 V / 5200 mAh Standby time: Up to 10 hours Continuous printing time: More than 3 hours Thermal paper width: 210 mm Paper speed: 5 / 6.25 / 10 / 12.5 / 25 / 50 mm/s Sensitivity adjustment: Automatic and manual Defibrillator protection: Yes Medical electrical equipment classification: Class I, CF Protection against liquids: IPX0 CE certified: Yes Clinical use: Yes Suitable for mobile patient care: Yes Suitable for hospital use: Yes Suitable for outpatient clinics: Yes Suitable for general practitioners: Yes Professional diagnostic ECG system: Yes
Accessories
Standard Accessories
1 × ECG cable
1 × Limb electrode set
1 × Chest electrode set
1 × Thermal paper
1 × Power cable
1 × Grounding cable
1 × User manual
Optional Accessories
PC software
Conversion crocodile clips + disposable electrodes
Trolley / stand
