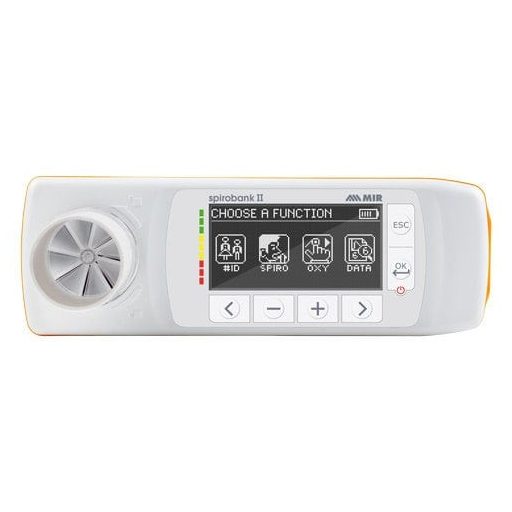

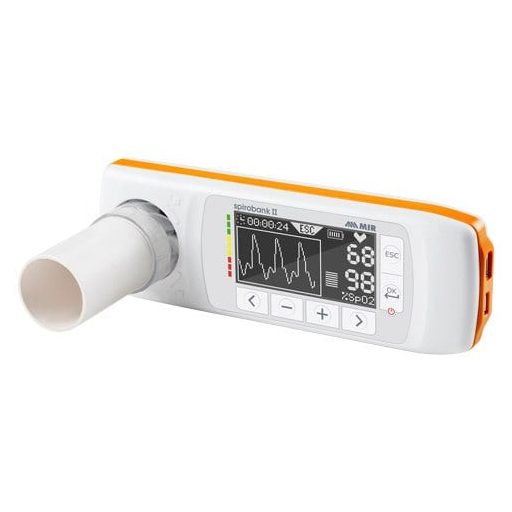

Spirobank II disposable turbine

The user-friendly, intuitive mobile spirometer offers sufficient storage space for up to 10,000 tests and provides immediate diagnosis with a traffic light display. The real-time spirometry curve allows the results to be evaluated immediately, directly on the device.

• Portable spirometer with high resolution display
• Quick and intuitive to use with symbol-based function keys
• Background lighting enables use in emergency medicine
• Storage space for up to 10,000 spirometry readings
• With integrated high performance battery (approximately 40 operating hours)
• USB connection for data transfer
• Estimated lung age (ELA)
• With motivational images for children
• Bronchodilator comparison on your PC with Winspiro PRO® software

Technical Data

• Measurable parameters: FVC, FEV1, FEV1 %, PEF, FEF25-75 %, FET, EVOL (extrapolated volume), ELA (estimated lung age), VC, IVC, IC, ERV
• LCD display with background lighting, resolution: 160 x 18
• 3.7 V lithium battery, rechargeable
• Temperature sensor: Semiconducting (0 - 45 °C)
• Flow sensor: Bi-directional, digital turbine
• Volume: 10 litres
• Dimensions: 16.0 x 5.5 x 2.5 cm

WinspiroPRO Software

• Compatible with Windows 7, 8, 10, Vista and XP
• Innovative interface
• Results and diagrams can be sent by email
• Curves and tests in various formats, such as Word, Excel, PDF and HTML
• Display and comparison of all spirometry curves and calculations of the measured Delta values
