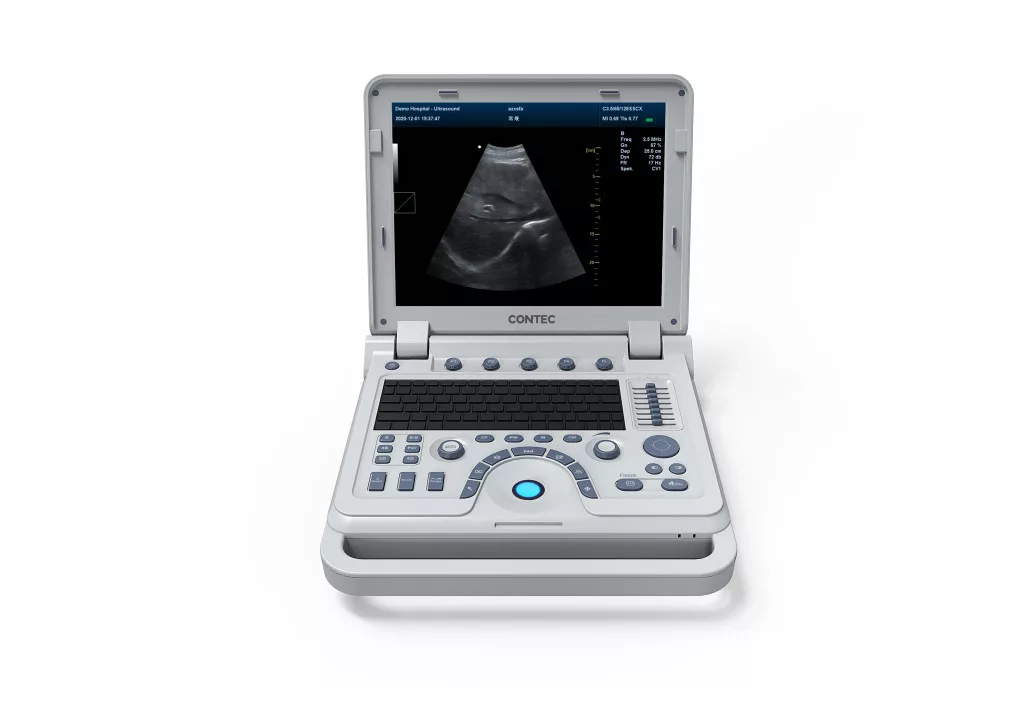

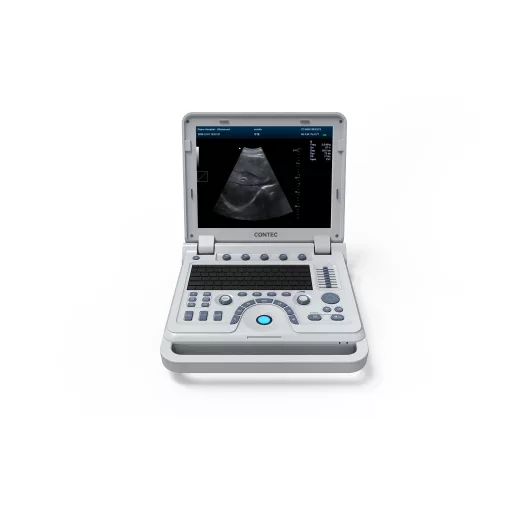

Contec CMS600P2PLUS-VET veterinary ultrasound scanner with PW Doppler, 15" display and convex probe

Contec CMS600P2PLUS-VET veterinary ultrasound scanner with PW Doppler

The Contec CMS600P2PLUS-VET is a high-resolution B-mode veterinary ultrasound system with a powerful computer platform and pulsed-wave Doppler (PW). It is designed for ultrasound examinations of dogs, cats, sheep, goats, cattle, horses and pigs.

High-precision digital beamforming, tissue harmonic imaging and speckle suppression deliver detailed images, while the all-digital image management system and the included measurement software meet the needs of clinical diagnosis.

Key features

• 15" display, lightweight and compact design


• built-in lithium battery, approx. 2 hours of operation


• 128 GB storage for patient data


• digital beamforming (DBF), real-time dynamic aperture (RDA)


• tissue harmonic imaging (THI), spatial compound imaging

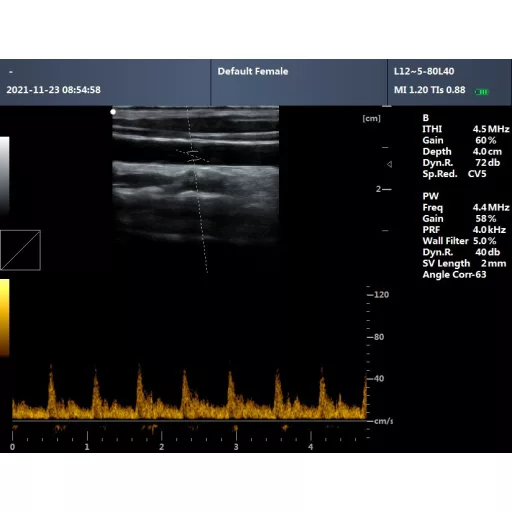

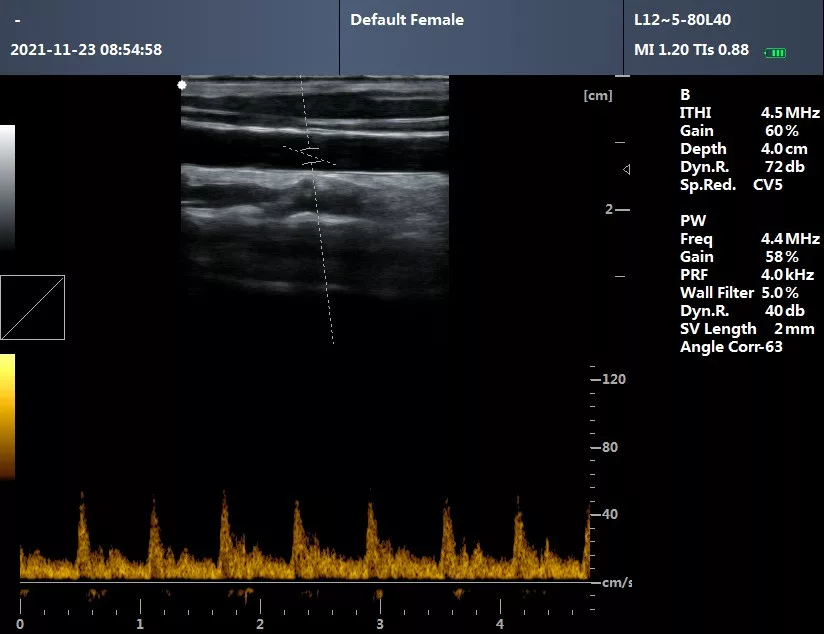

• pulsed-wave Doppler (PW)

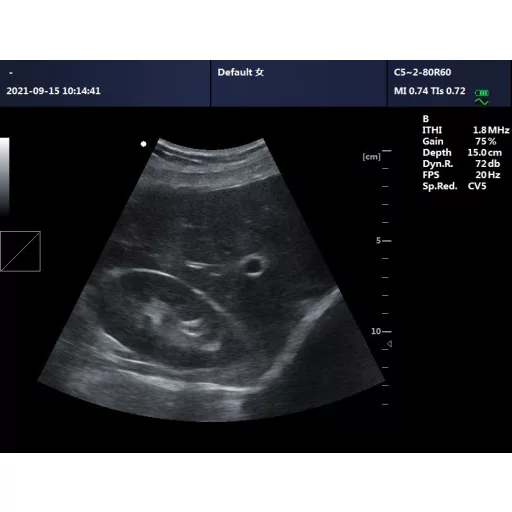

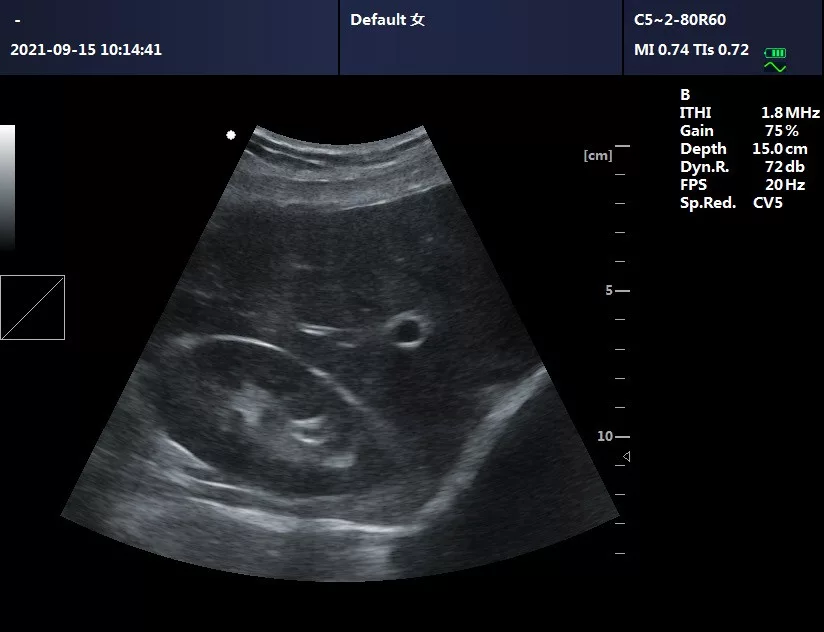

• Modes: B, 2B, 4B, B/M, M, PW

Measurements

• obstetric measurements: expected date of birth and gestational age for cattle, horses, sheep, dogs, cats and pigs


• automatic measurement of backfat and lean percentage in pigs

Applications

• small-animal practice: dogs, cats


• large-animal and livestock practice: cattle, horses, pigs, sheep, goats

Configurations

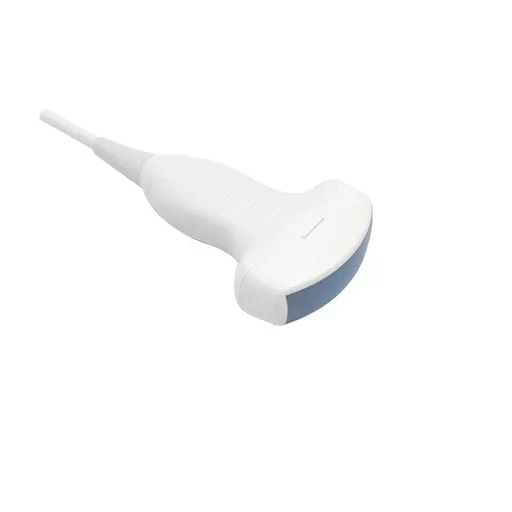

• Base configuration: with convex probe (this product)


• Variants available separately: with linear or rectal probe


• Optional: trolley

Technical data

• Manufacturer: Contec


• Model: CMS600P2PLUS-VET


• Display: 15"


• Modes: B, 2B, 4B, B/M, M, PW


• Scanning depth: up to 250 mm

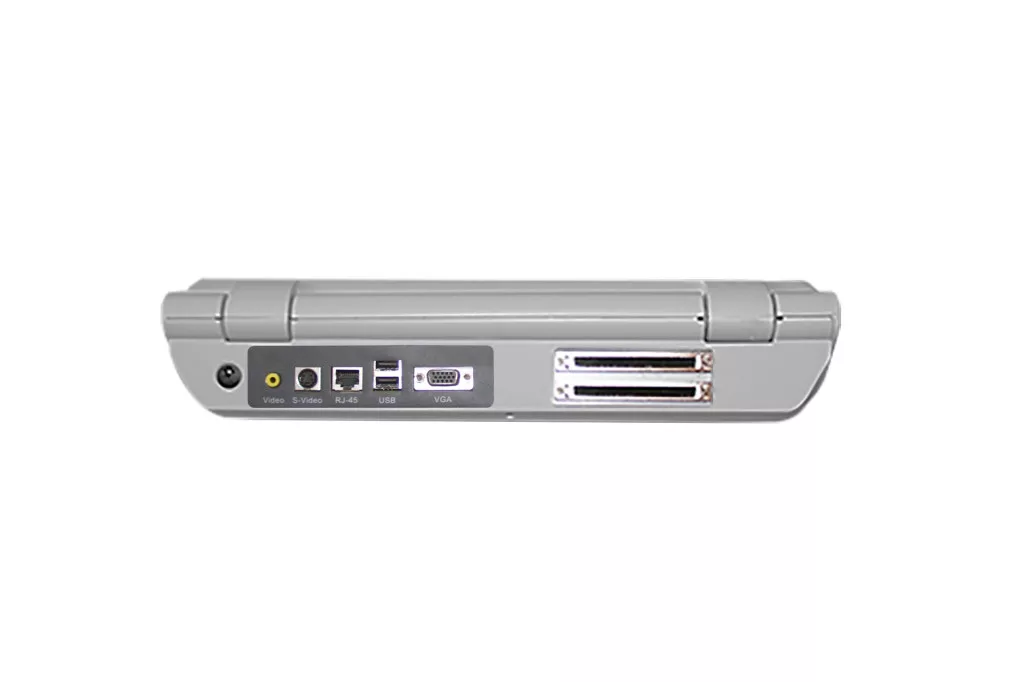

• Interfaces: 2 probe ports, 2 USB, VIDEO, S-VIDEO, RJ-45, VGA


• Power supply: AC 100–240 V, 50/60 Hz, built-in lithium battery


• Power consumption: ≤ 100 VA


• Electrical safety: Class I equipment, type BF applied part


• Dimensions: 370 × 360 × 80 mm (L × W × H)


• Weight: 6.5 kg

Important: For veterinary use only, not intended for human diagnostics. Please confirm the exact package contents (probe type) with us before ordering.
