Alpha G-15 LED colposcope on mobile stand, 10x magnification, with green filter, Ref: G-15

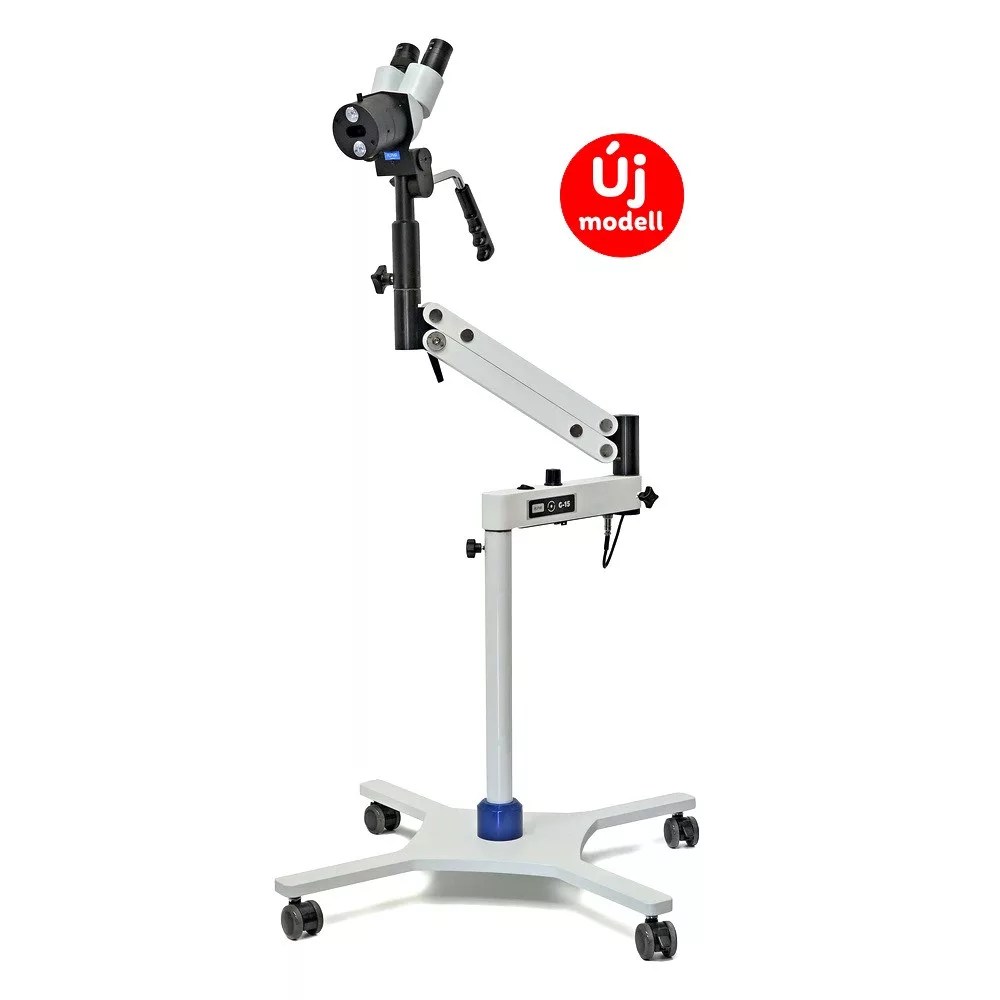

Alpha G-15 LED colposcope on mobile stand

The Alpha G-15 is a Hungarian-made binocular colposcope for magnified examination of the cervix and vagina. Fixed 10x magnification, a 200 mm working distance and bright dual direct LED illumination make everyday work in the practice simple and reliable.

The built-in switchable green filter is protected inside the light source, so it cannot be damaged and is easy to use. The gas-spring arm and the high-stability mobile stand are easy to move.

Key features

• Ergonomic, comfortable handle
• Built-in switchable green filter (Safety Green Filter)
• Gas-spring arm with long reach and lockable pivot points
• Fixed 10x magnification, binocular head
• High-power Dual Direct LED illumination with natural colours and dimmer
• Low power consumption
• Metal stand with four castors, two with brakes
• 3-year warranty

Applications

• Colposcopic examination and screening of the cervix
• Gynaecology outpatient clinics, private practices, hospital wards

Technical data

• Manufacturer: Elektro-Optika Kft. (Hungary)
• Type / Ref: G-15 (stand version)
• Head: tiltable (±15°), rotatable (300°), height-adjustable; 45° inclined light path
• Eyepieces: WF 10x/20 mm with rubber eyecups
• Total magnification: 10x
• Field of view: 22 mm
• Working distance: 200 mm
• Interpupillary distance: 55–75 mm
• Dioptre correction: ±5 D on the right eyepiece tube
• Illumination: 2 × 2 W Dual Direct LED, 4000 K, with dimmer
• Light intensity: 105,000 lux (at 200 mm)

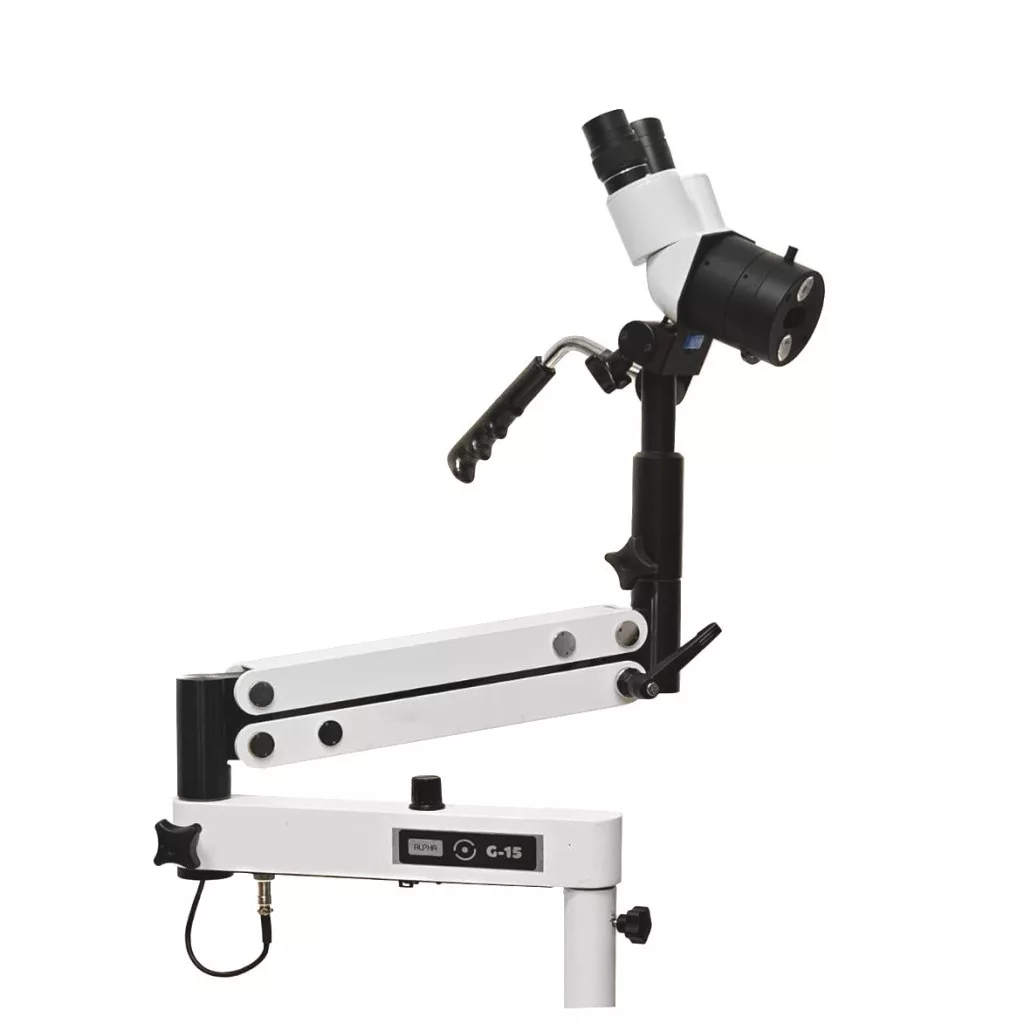

• Arm: max. reach from vertical column 740 mm, height adjustment ±160 mm

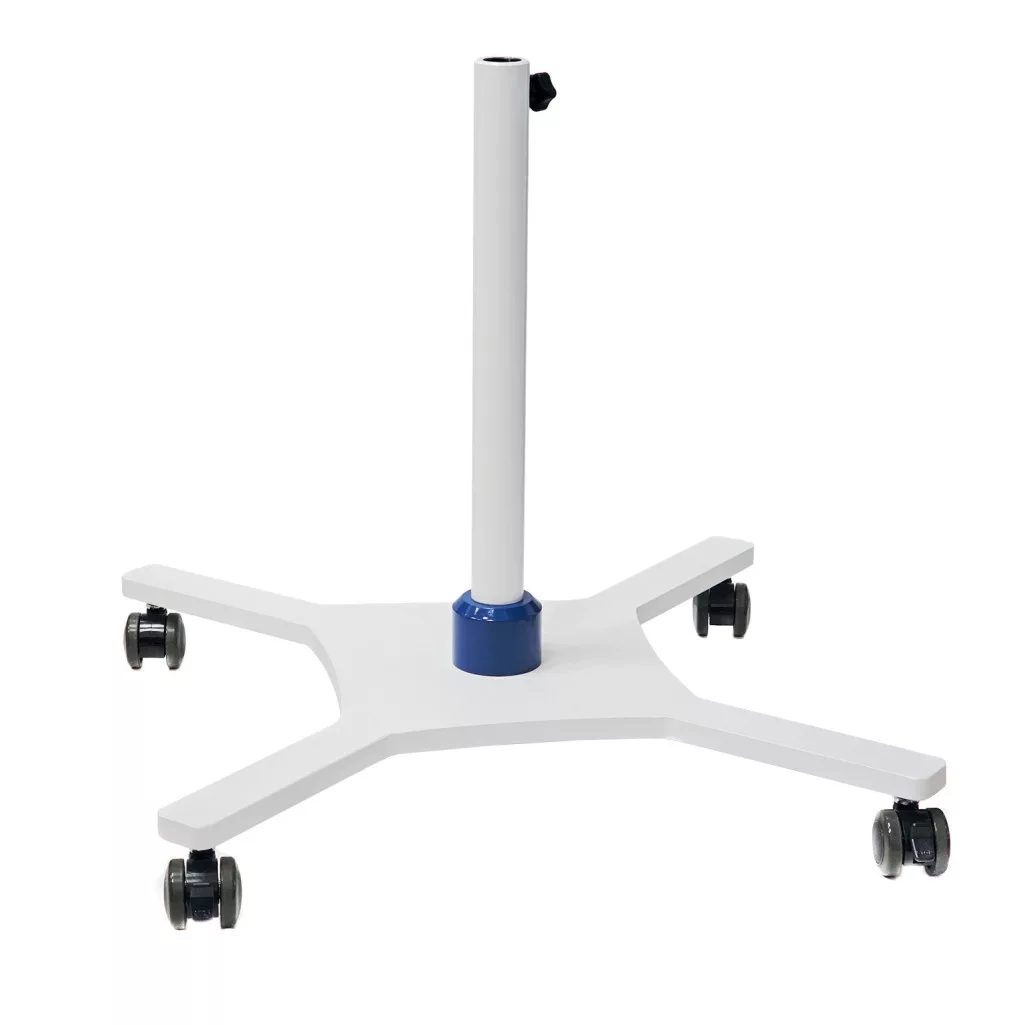

• Stand: metal, 4 castors (2 with brakes), base 470 × 470 mm
• Weight: 18 kg
• Package contents: dust cover, power supply, rubber eyecups, assembly instructions
• Warranty: 3 years

Note: smartphone adapter and examination chair mounting kit are available separately.
