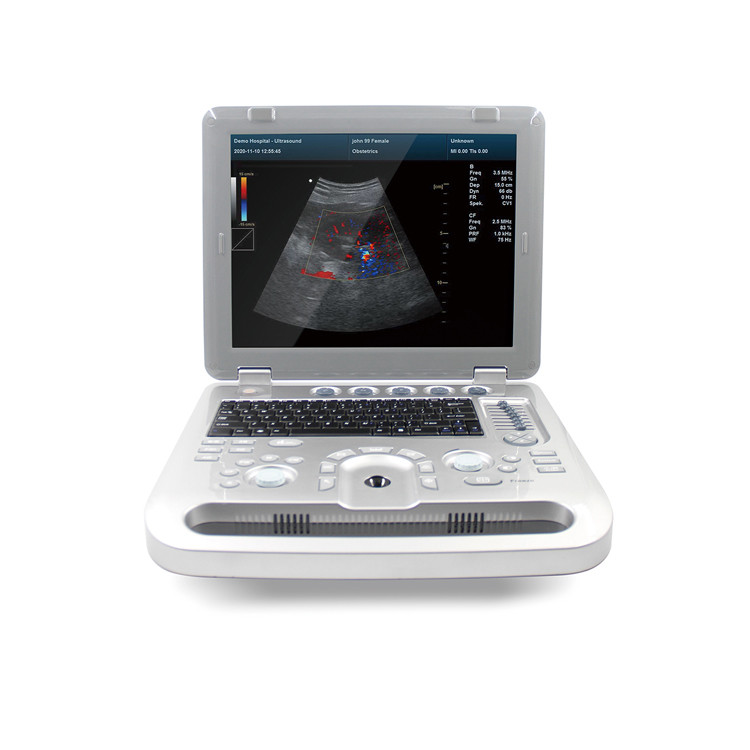

Contec CMS1700A portable color ultrasonic scanner diagnostic system, color doppler + probe
The Contec CMS1700A is a high-resolution color Doppler ultrasound diagnostic instrument with a powerful computer processing platform. The system is mainly suitable for the diagnosis of abdomen, heart, peripheral blood vessels, breast, obstetrics and gynecology, small organs, urology, muscle, incretio and pediatrics, etc. It adopts Doppler ultrasound imaging technology, advanced image processing technology (such as digital beamforming technology, tissue harmonic imaging (THI), image speckle suppression, etc.) and digital integrated graphic management system, and the internal professional measurement software package fully meets the clinical diagnostic requirements.

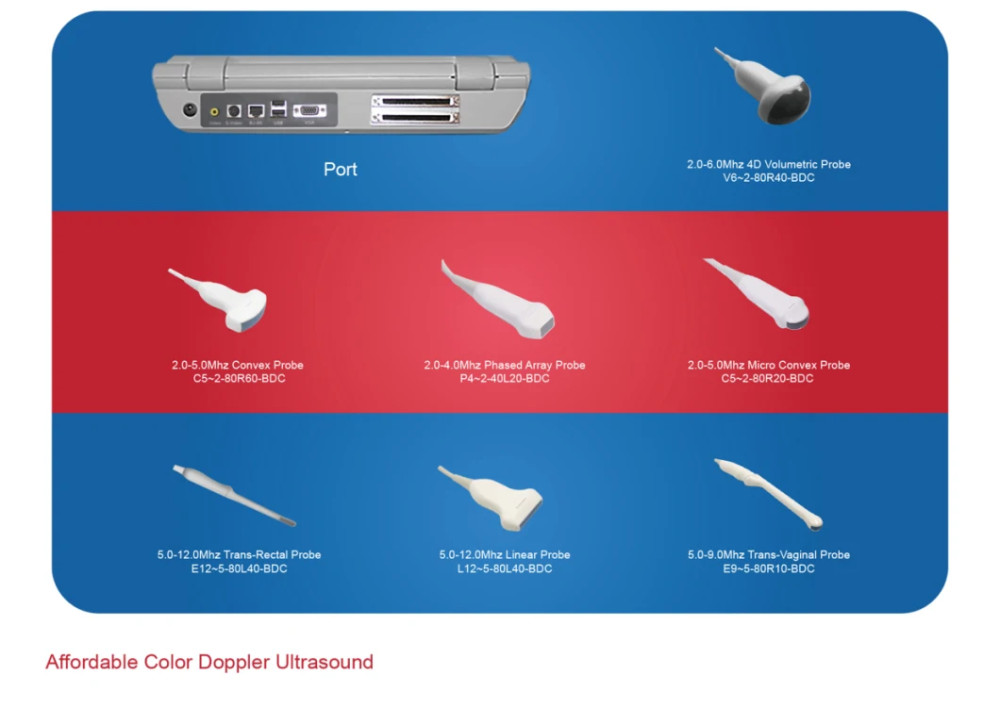

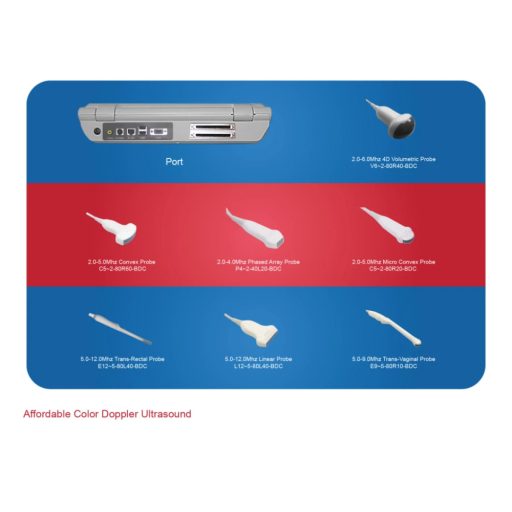

The product is optionally available with different head types - please enquire by private message!

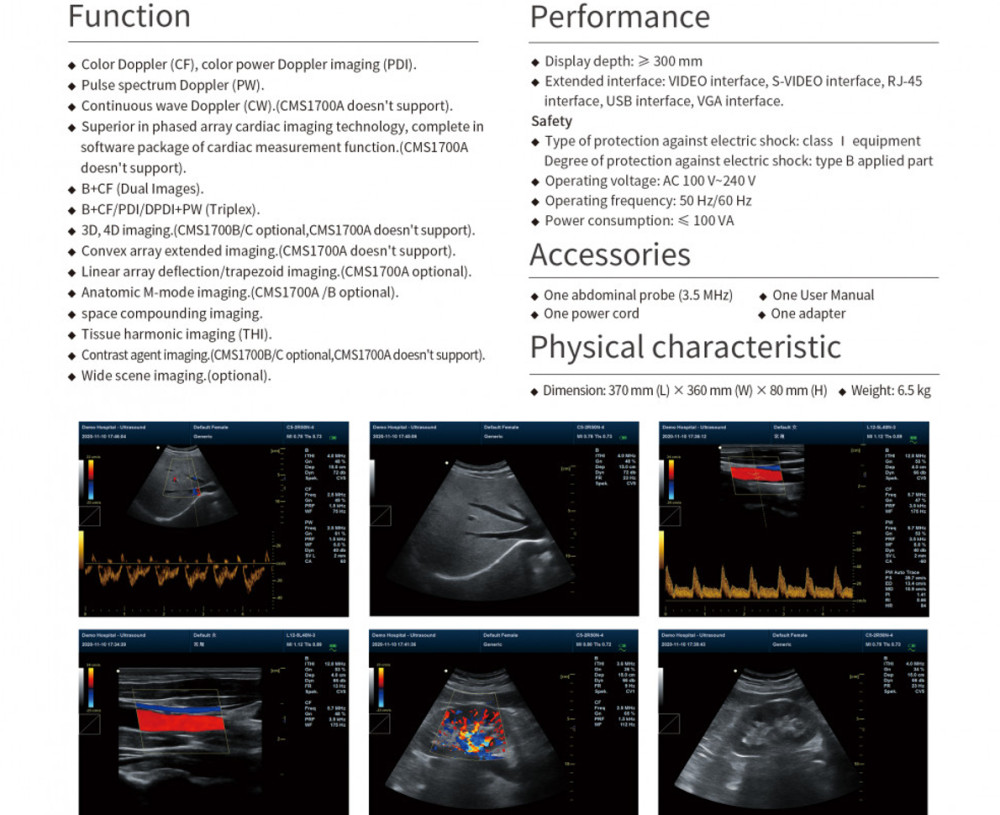

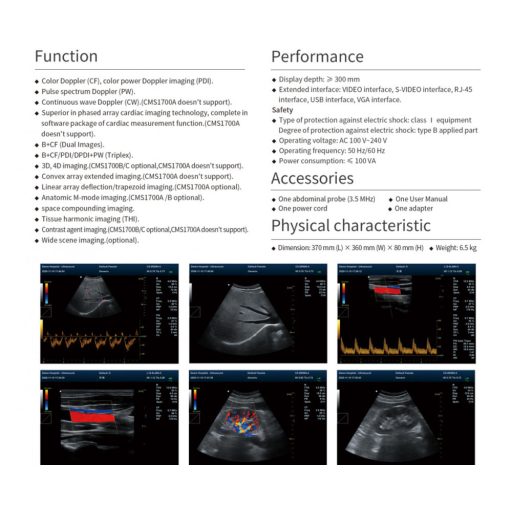

Features
1) Colour Doppler (CF), colour power Doppler imaging (PDI).
2) Pulse spectrum Doppler (PW).
3) B+CF colour double-frame real-time imaging.
4) Linear array deflection/trapezoidal imaging, contrast imaging.
5) Anatomical M-mode imaging.
6) Space composition imaging
7) Tissue harmonic imaging (THI).
8) Spatial composition imaging
9) Puncture extended.
Performance
1) Display depth: ≥ 300 mm
2) Implementation of three mode synchronization (B+CFM/PDI+PWD).

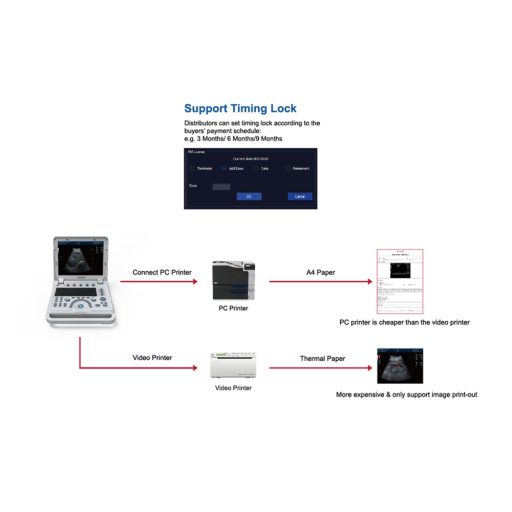

3) Extended interface: VIDEO interface, S-VIDEO interface, RJ-45 interface, USB interface, VGA interface.
Security
Type of protection against electric shock: Ⅰ class equipment.
Degree of protection against electric shock: Type B applied part
Operating voltage: AC 100 V~240 V
Operating frequency: 50 Hz/60 Hz
Power consumption: ≤ 100 VA

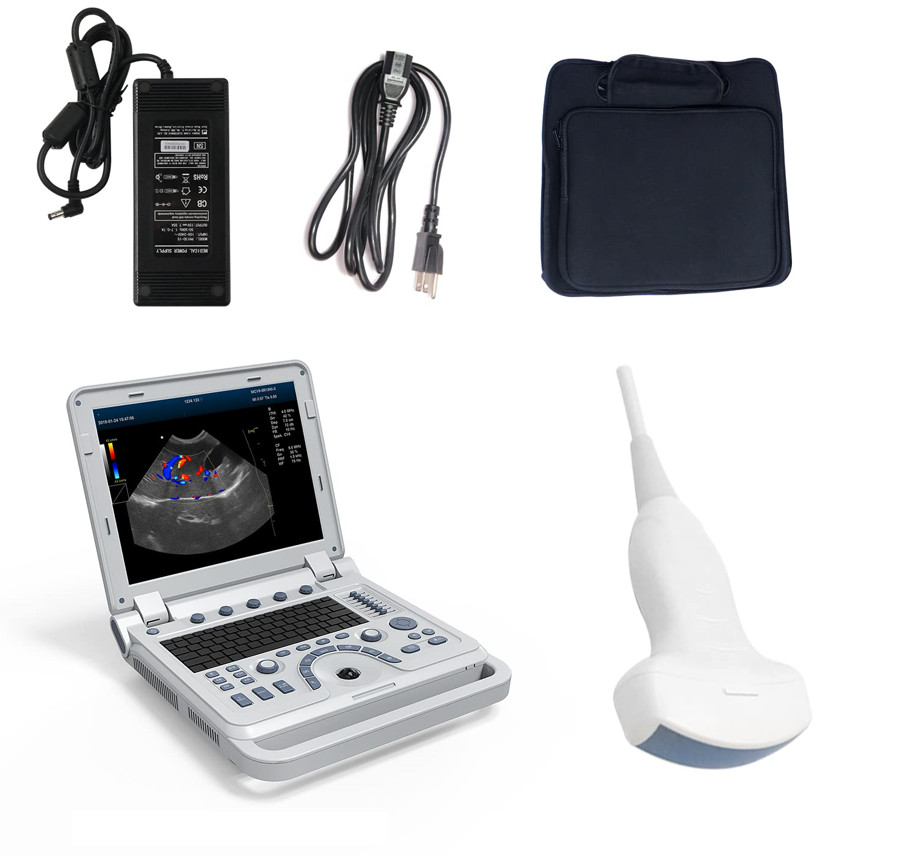

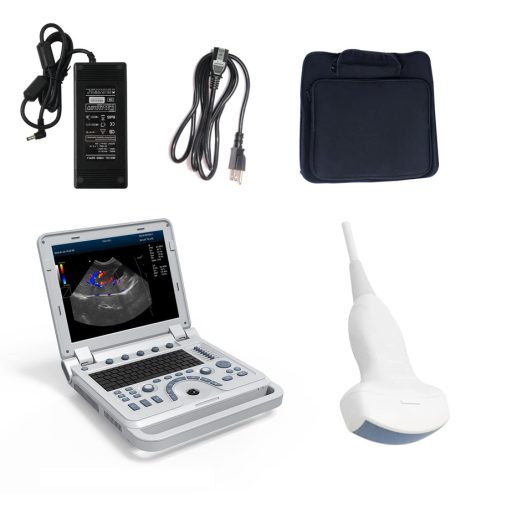

Accessories
One user manual, power cable , adapter, belly probe (3.5 MHz)
5 Physical characteristics
Size: 370 mm (length) × 360 mm (width) × 80 mm (height)
Weight: 5,5 kg
