SonoScape P60 Trolley Color Doppler Ultrasound Machine, Wis+ platform
P60, configured with SonoScape’s latest prominent Wis+ platform, is designed to provide more insightful and constructive evidence for diagnosis through authentic detail display, easy-but-effective intelligent analysis and streamlined workflow.
Wis+ is an Artificial Intelligence Based Ultrasound Platform
The adoption of AI on P60 not only simplifies the workflow greatly, but also provides enhanced reproducibility and consistency in measurement.
P60, configured with SonoScape’s latest prominent Wis+ platform, is designed to provide more insightful and constructive evidence for diagnosis through authentic detail display, easy-but-effective intelligent analysis and streamlined workflow.
Wis+ is an Artificial Intelligence Based Ultrasound Platform
The adoption of AI on P60 not only simplifies the workflow greatly, but also provides enhanced reproducibility and consistency in measurement.

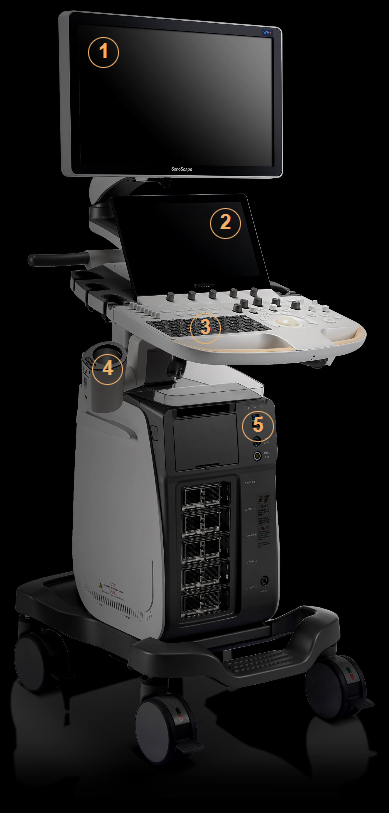

1. - 21.5-inch LED Monitor
P60 features a large size 21.5-inch high definition LED monitor, providing excellent image display to users.
2. - 13.3-inch Tilting Touch Screen
13.3-inch touch screen allows users to browse and select functions with ease. A tilting design works for adjustment in terms of users’ needs.

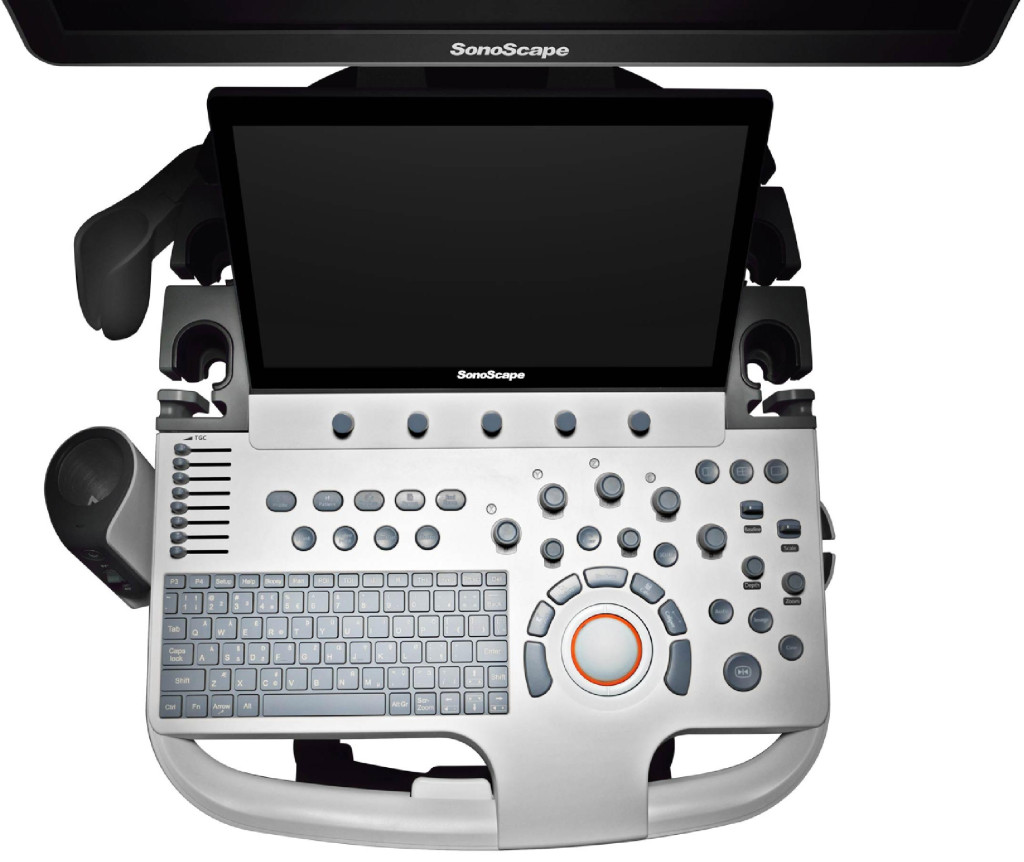

3. - User-friendly Layout
Unique console design provides easy access to all kinds of common-used operation. Shortcut and customizable keys make it possible for users to tailor the workflow at their convenience.
4. - Gel Warmer
To ensure a comfortable patient experience, a gel warmer is available to be installed on the side of the control panel.
5. - Built-in Battery
A built-in battery supports P60 to work for 2 hours without power supply, leaving users no worry about accidental pause and data loss due to power outage.
|
Release Date |
2021,02 |
|
Platform |
Wis+ |
|
Physical Specifications |
|
|
Monitor (inch) |
21.5" |
|
Touch Screen (inch) |
13.3" |
|
Touch Screen Angle Adjustable |
Yes |
|
Weight |
84Kg |
|
Control Panel Rotatable and Liftable |
Rotatable, Liftable : 230mm; |
|
Probe Socket |
5 active |
|
Built-in USB Port |
6（4 USB 2.0, 2 USB 3.0） |
|
B Mode |
|
|
Muti Frequency Range |
5 steps |
|
Depth |
min 40cm (depends on probes) |
|
Gain |
0-255 |
|
Line Density |
Low, Mid, High, Super High |
|
Speckle Reduction Technology |
Yes |
|
Extending Imaging (Widescan&Trapezoid) |
Yes: 3 steps |
|
Tissue Specific Index |
1400-1700, total 31 steps |
|
2D realtime Panoramic |
Yes |
|
Focus number |
13 |
|
Gray Scale |
1-15 |
|
Zoom |
Yes |
|
Screen Zoom |
Support one - button full screen zoom |
|
HD-Zoom |
Yes |
|
One-key Optimization |
Yes |
|
Color map (Chroma) |
13 |
|
Biopsy Guide |
Multiple angles, support Biopsy needle and biopsy gun type |
|
M Mode |
|
|
AMM |
3 lines |
|
Gain |
1-255 |
|
TDI M-mode |
Yes |
|
Color Doppler Mode |
|
|
High Resolution Blood Flow Imaging Technology |
SR-Flow |
|
Micro Blood Flow Imaging Technology |
Micro-F |
|
Baseline |
31 steps |
|
Gain |
0-255, 2/step |
|
ROI Steering |
±20 degree |
|
Color/Power Panoramic |
Yes, support |
|
Bright Flow(3D flow imaging) |
Yes, 4 leves |
|
PW |
|
|
Gain |
0-255, 2/step |
|
Dynamic Range |
1-5, 5 steps |
|
Steering Angle |
±20 degree(5 levels) |
|
Sample Volume |
0.5-24mm |
|
|
|
|
TDI |
TVI, TVD, TVM |
|
Tissue Doppler Quantitative Software |
Yes |
|
Tissue Tracking |
Yes, MQA and RQA |
|
|
|
|
Elastography |
Yes |
|
|
|
|
LVO (Left Ventricular Opacification) |
Yes |
|
VOCAL |
Yes |
|
Abdominal Contrast |
Yes |
|
GYN Contrast |
Yes |
|
Small Parts Contrast |
Yes |
|
Real-time Microangiography |
MFI |
|
Perfusion Time Imaging Technique |
MFI Time |
|
Storage Time |
10 minutes |
|
Position Switch of Contrast and Tissue Images |
Yes |
|
Mix of Contrast and Tissue Images |
Yes |
|
Time-intensity Analysis TIC |
Yes |
|
Other Features |
|
|
Stress Echo |
Yes |
|
G-MQA and R-MQA |
Yes |
|
Tutorial Software |
Yes, Sono-help (support liver, heart, breast, thyroid, kidney, spleen and uterus, and fetal section) |
|
S-MSK |
Yes |
|
S-Thyroid(Auto assistant, comply TI-RADS) |
Yes |
|
S-Hip |
Yes |
|
Sono-Assistant |
Yes |
|
Sono-Synch(telemedicine) |
Yes |
|
Sono-Drop |
Yes |
|
Quadruplets Comparative Measurement Analysis |
Yes, can show in the calc. comparison table |
|
Auto NT |
Yes |
|
Auto IMT |
Yes |
|
Auto EF |
Yes |
|
ECG |
Yes |
|
S-Fetus |
Yes |
|
S-Endo/S-Follicle |
Yes |
|
S-PF(Smart pelvic) |
Yes |
|
Storage and Management |
|
|
Preset Mode |
Yes |
|
Graphical Diagnostic Body Label |
Yes. Specific organ icon |
|
Automatic Workflow |
Yes |
|
Support Real-time Scanning during Exporting, Saving Image |
Yes |
|
Simultaneous Display on Monitor and Touch Screen |
No |
|
Internal Hard-disk |
2TB |
|
DICOM Structured Report |
Yes |
|
WIFI |
Yes |
|
Prospective storage |
Yes 600s |
|
Retrospective storage |
Yes 20s |
|
Freeze storage |
Yes 120s |
|
System On/Off |
|
|
System Cold Boot Time |
≤56s |
|
Peripherals and Accessories |
|
|
Specific (Endocavity) Probe Holder |
Yes |
|
Gel Warmer |
Yes |
|
Built-in Battery |
Yes |
