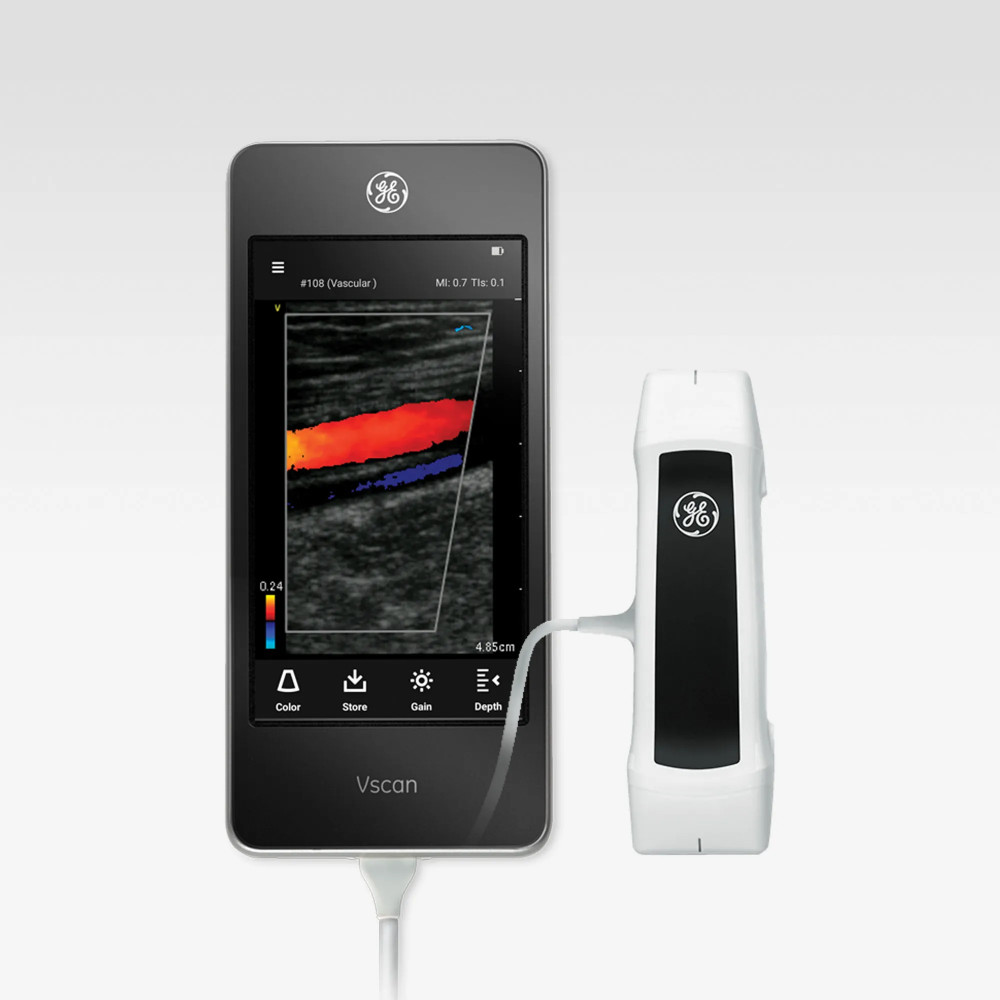

GE Vscan Extend Ultrasound

Article No.:

WINTER569903

Best choice

5 years warranty

The Vscan™ range of handheld ultrasound devices enables efficient patient care - directly on site. That's why it's suitable for taking high-quality images where you need them - we recommend it for internal medicine, emergency care, urology, cardiology, obstetrics and paediatrics. The Vscan Extend™ is an intuitive and portable pocket-sized ultrasound device that allows physicians to take images right at the patient's bedside - adding additional information to the physical exam to achieve optimal patient care.

Manufacturer: GE Healthcare

Available for order

Transducer

Required to fill out!

Not available for purchase!

Details

- Pocket-sized diagnostic ultrasound system
- Fast and easy data transfer via USB or Wi-Fi
- Imaging modes: B-mode, colour Doppler
- Expand the range of functions with additional applications
- Available with optional dual or sector converter

Applications:

- Ultrasound examinations directly at the scene of an accident or at the patient's bedside
- Examination of kidneys, heart and abdomen
- Perfect for medical practices, hospitals and emergency services
- Also suitable for children and adults

The pocket-sized Vscan Extend™ ultrasound system is specifically designed to be mobile and fast to use, with a variety of imaging modes such as B-mode, colour Doppler, and more. Because the device is particularly handy and can be brought from standby to standby within 10 seconds, it is ideal for diagnosing directly at the scene of an accident or at the bedside. The system is DICOM-compatible and allows data transfer via USB or Wi-Fi.

It has a user-friendly interface with touch screen. Especially during the initial use of the ultrasound system, the ultrasound examination is simplified with the help of user-defined protocols that represent step-by-step instructions.

Thanks to anonymised images, FIPS 197 data encryption and password-protected access, patient data is also secure when not in use. Data transmission is also encrypted. The device supports wireless encryption for enterprise standards including EAP and WPA2 (PSK) and has limited administrator access to critical settings such as Wi-Fi encryption and MDM client setup.

Where applicable, the diagnostic ultrasound system is equipped with a sector probe or dual transducer consisting of linear and sector heads.

Functions:

- Imaging modes: B-mode and color Doppler
- Black and white mode for real-time imaging of anatomical structures
- Color-coded overlay for real-time visualization of blood flow
- Field of view for black and white images: up to 70 degrees, maximum depth 24 cm
- Presets to simplify optimized settings for imaging different organs
- Pre-defined protocols simplify the implementation of each step of the ultrasound examination
- Automatic detection of the complete cardiac cycle
- Replaceable element
- Sector with head for visualisation of deep structures
- Dual head (consisting of sector and linear heads) for displaying deep and surface structures
- For examination of the kidney, heart and abdomen
- Perfect for urology, obstetrics and gynaecology

Technical data:

- Display size: 168 x 76 x 22 mm
- 5-inch display, 720 x 1280 pixel resolution
- Ultrasonic device weight: 321 g (including battery)
- Probe size: 129 x 32 x 25 mm (sector converter); 129 x 28 x 28 mm (dual converter)
- Frequency range: 3,3 - 8,0 MHz (linear probe); 1,7 - 3,8 MHz (sector probe)
- Probe weight: 85 g (sector converter); 120 g (dual converter)
- Continuous scan time 60 minutes
- Battery charge up to 90% within 75 minutes

Accessories:

- Vscan Extend device
- Vsvs Extend Extend
- Rechargeable battery
- USB cable
- 2x Micro SD card
- Protective cover
- Ultrasound gel (60g)
- Users manual

Info

Weight:

321 g/pcs
